PRODUCT DETAILS

You are here: Home » Products » Linear Guides » HIWIN » Original HIWIN Linear Guide EGH25CA TaiWan Guideways Bearing
Share to:

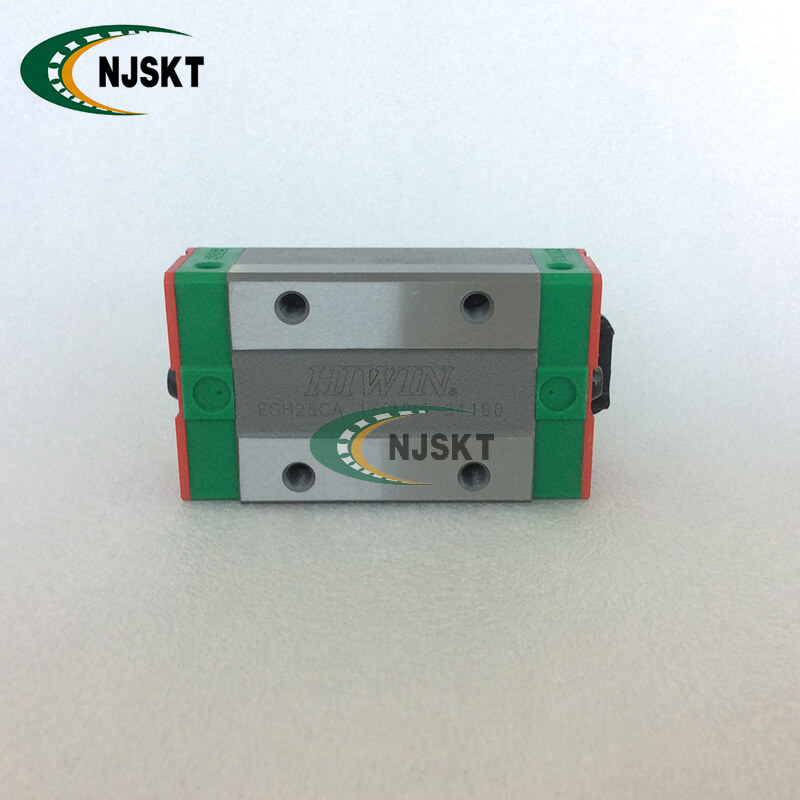

Original HIWIN Linear Guide EGH25CA TaiWan Guideways Bearing

Item # : EGH25CA, EGH25CAZAC
Series: EG series
Block Type: Square type block
Model Size : 25 mm
Load Type: Medium Load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Z0- Light Preload (0 ~ 0.02C) , ZA- Medium Preload (0.03 ~ 0.05C) , ZB-Heavy Preload (0.06 ~ 0.08C)

Quantity:
  • EGH25CA
  • HIWIN
  • EGH25CAZAC

Original HIWIN Linear Guide EGH25CA TaiWan Guideways Bearing


TAIWAN HIWIN offeres two type blocks of flange type and square type, 25 mm square type block EGH25CAZAC mounting from top, these linear blocks can install with the EGR25R linear guide rail. the rail lenght can supply 50 mm to 4000mm each piece. also if needs the length of more than 4000mm, we can provide the joint sevice to meet your request.


Please notat that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have C (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).


The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.


EG 结构

Item #
EGH25CA, EGH25CAZAC, EGH25CAZ0C
Series
EG series
Block Type
Square type
Model Size
25 mm
Load Type
Medium load
Block Mounting
Mounting from Top
Block
Standard type block

Preload Class

Z0- Light Preload (0 ~ 0.02C)  ,

ZA- Medium Preload (0.03 ~ 0.05C) ,

ZB-Heavy Preload (0.06 ~ 0.08C)


Precision code

C

Dust Protection

Standard preotection (End seal and bottom seal)

EG linear guideEG linear guideEG linear guide

EG linear guide







01

 Single color box of original


02

 Suitable carton size


03

Carton box for rail


05

  Remark:

   For the large quantity of the rail or linear carriage, We will package them with        wooden box before shipment.


Any questions and answers for HIWIN linear guides

S/N
Questions
Answers
1.
BrandHIWIN
2.
Fake or original genuine TaiWan HIWIN products you supply to customer?
We provide the 100% original Genuine TaiWan HIWIN products.
3.
How to gurantee of original HIWIN brand?
  1. You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods.

  2. Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.

4.
What kind of HIWIN linear guide you can supply to customers?
We can supply HG, EG, MG, RG, CG, WE types etc.
5.
What length of linear rail you provide to customers?

Max length of linear rail is 5600mm each, we can cut linear rail length by customer's

also supply the joint service if needs 1 pcs more than 5600mm.

6.
What preload of HIWIN linear guide you supply to customers?
Z0, ZA, ZB, ZF( contact sales to get the details)
7.
What accuracy of HIWIN linear guide you can supply to customers?

Grade C, H , P ( Stocked items)

Grade SP, UP  (We can help you to order them from TaiWan factory)

8.
Do you have stock for precision roller guides?
Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)
9.
Can you supply dust seals and self- lubricating systems of linear block?
Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available.
10.
Can you sell the linear block and linear rail in separated?
Sure, Linear block and linear rail in separated is available.
