HIWIN HGH25HA - Buy Product on Nanjing ShengKaiTe Bearing Co., Ltd.

25mm HIWIN Linear Guide Block HGH25HA Micro Linear Guide

HIWIN HG type super heavy load type linear carriage HGH25HA made from TaiWan, The model size is 25mm, the rail width is 23mm, and the linear rail max length has 4000mm each (HGR25R4000C, HGR25R4000H, HGR25R4000P, if needs the lengths of more than 4000mm each pcs, we can provide the joint service, so will become the length according your request. HIWIN guide block HGH25HA are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error, Thus, TaiWan HIWIN HG type linear guideways can achieve a long life with high speed, high accuracy and smotth linear motion.

hiwin hg linear guide

Item #	HGH25HA, HGH25HAZAC
Series	HG series
Block Type	Square type
Model Size	25 mm
Load Type	Super heavy load
Block Mounting	Mounting from Top
Block	Standard type block
Preload Class	Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)
Precision code	C
Dust Protection	Standard preotection (End seal and bottom seal)

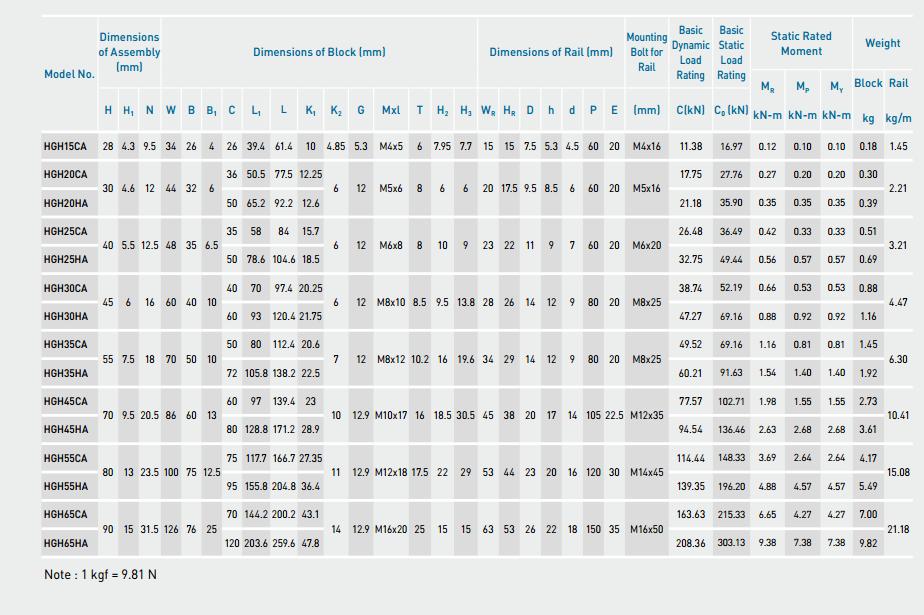

HGH series linear guide size

HIWIN linear guide HGH series

HGH25HAZAC-HiwinCorporation-09-10-2019.pdf

Single color box of original

Suitable carton size

Carton box for rail

Remark:

For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment.

HIWIN guideways are supplied with a coating of anti-corrosion oil before being shipped. Please clean the oil before moving or running the blocks.
Recognition of master and subsidiary rails: For non-interchangeable type linear guideways, there are some differences between the master rail and subsidiary rail. The accuracy of the master rail’s datum plane is better than the subsidiary’s and it can be a reference side for installation. There is a mark “MA” printed on the rail. Check for the correct order before starting the installation. The rail number of master is an odd number and the rail number of subsidiary is an even number. Please install the rails according to the indication and carry on the installation according to the order for multi-rails installment (e. g.: 001 pairs 002 ; 003 pairs 004 etc.)
Recognition of datum plane: The datum plane (B) of rail is the side indicated by the arrow, which is marked on the top surface of the rail. The datum plane of block is smooth ground surface which shows as D in Figure 2.
Butt-joint rail: Butt-joint rail should be installed by following the arrow sign and ordinal number which is marked on the surface of each rail as shown in the figure 3. To avoid accuracy problems due to discrepancies between the 2 rails such as for matched pair, butt-joint rails, the jointed positions should be staggered as shown in figure 4.
Do not remove blocks from rails when assembling the guideways in machines as far as possible. Please use block inserts (please see Figure 5) if it is necessary to remove/ mount block from/ onto rail.
Please do not randomly mix block units and rails for non interchangeable type to avoid any installation problem.
To ensure the straightness of rail, please tighten the mounting bolts sequentially with a torque wrench to the specified torque. (Refer to HIWIN Technical Information).
