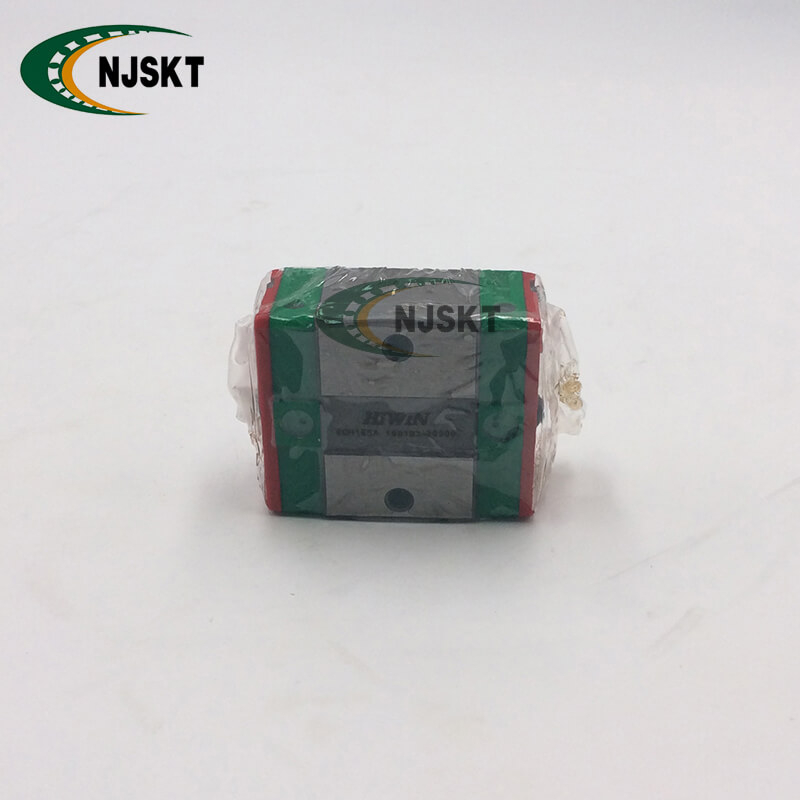

Original HIWIN Linear Guide EGH20SA Linear Bearing
TAIWAN HIWIN offeres two type blocks of flange type and square type, 20 mm square type block EGH20SAZAC mounting from top, these linear blocks can install with the EGR20R linear guide rail. the rail lenght can supply 50 mm to 4000mm each piece. also if needs the length of more than 4000mm, we can provide the joint sevice to meet your request.
Please notat that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have C (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.
|Item # ||EGH20SA, EGH20SAZAC, EGHSAZ0C |
|Series ||EG series|
|Block Type ||Square type |
|Model Size ||15 mm |
|Load Type ||Medium load |
|Block Mounting ||Mounting from Top |
|Block ||Standard type block |
Z0- Light Preload (0 ~ 0.02C) ,
ZA- Medium Preload (0.03 ~ 0.05C) ,
ZB-Heavy Preload (0.06 ~ 0.08C)
|Precision code || |
|Dust Protection || |
Standard preotection (End seal and bottom seal)
Single color box of original
Suitable carton size
Carton box for rail
For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment.
Any questions and answers for HIWIN linear guides
|2. ||Fake or original genuine TaiWan HIWIN products you supply to customer?||We provide the products.|
|3.||How to gurantee of original HIWIN brand?|
|4. ||What kind of HIWIN linear guide you can supply to customers?||We can supply HG, EG, MG, RG, CG, WE types etc.|
|5.||What length of linear rail you provide to customers?|
Max length of linear rail is 5600mm each, we can cut linear rail length by customer's
also supply the joint service if needs 1 pcs more than 5600mm.
|6.||What preload of HIWIN linear guide you supply to customers?||Z0, ZA, ZB, ZF( contact sales to get the details)|
|7.||What accuracy of HIWIN linear guide you can supply to customers?|
Grade C, H , P ( Stocked items)
Grade SP, UP (We can help you to order them from TaiWan factory)
|8.||Do you have stock for precision roller guides?||Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)|
|9.||Can you supply dust seals and self- lubricating systems of linear block?||Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available. |
|10.||Can you sell the linear block and linear rail in separated?||Sure, Linear block and linear rail in separated is available. |
