R20-10K3-FSC
HIWIN
R20-10K3-FSC-0.05

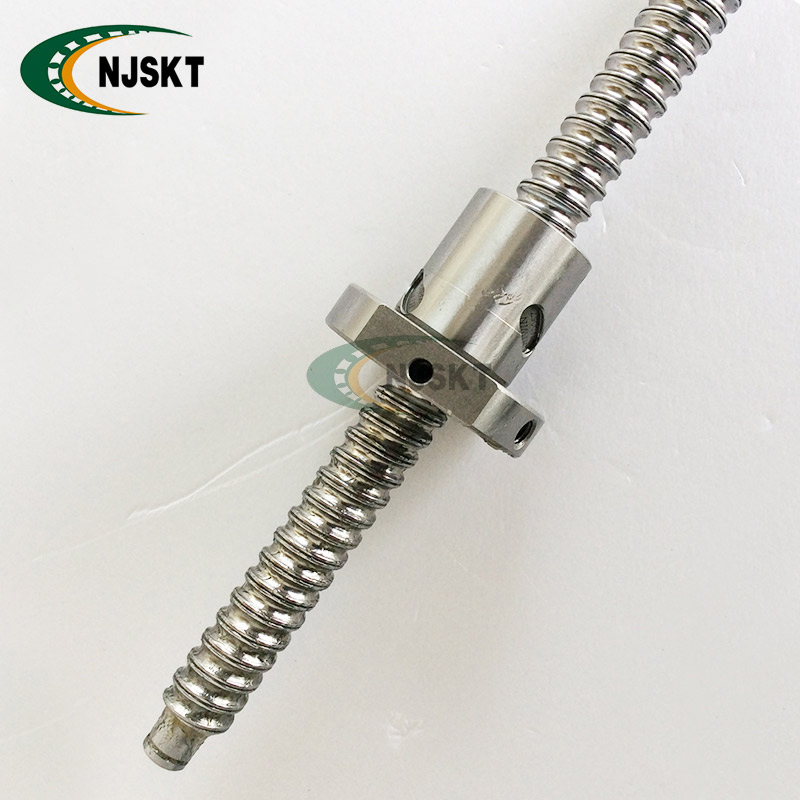

Shaft Diameter 20mm Lead 10mm HIWIN R20-10K3-FSC Rolled Ball Screws Standard Nut
HIWIN Ball screws consist of a screw spindle and a nut integrated with rolling elements that cycle through a return mechanism. Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines. Hiwin Corporation provides a wide range of ballscrew configurations to satisfy your special application requirements. Hiwin has the capability of producing JIS C0 class ground ballscrews, and DIN 5 class (up to 23 microns) for precision rolled ballscrews. Ballscrew O.D. ranging from 4mm to 120mm, and with Dm-N values up to 220,000.
The major differences between a rolled and ground ballscrew are the manufacturing process, the lead error definition and geometrical tolerances. Hiwin rolled ballscrews are made through a rolling process of the screw spindle instead of a grinding process. Rolled ballscrews provide smooth movement and low friction which can be supplied quickly from stock, at a lower production cost.
Nominal Model | FSC type |
Part Number | R20-10K3-FSC-0.05 |
Threading Direction | Right |
Nominal Diameter | 20 mm |
Lead | 10 mm |
Number of Turns (Turn·Row) | C1 ( 3 ) |
Flange Type | Double cutting ball nut |
Product Code | Rolled |
Accuracy Grade | C7 |
Overall Length of Shaft | 3000 mm (Max length) |
Axial Clearance and Preload Value | P0 (ZERO Backlash) |
Number of Nut | Install one nut on a shaft |
Nut Surface Treatment | Standard |
Shaft Surface Treatment | Standard |
Shaft Diameter 20mm Lead 10mm HIWIN R20-10K3-FSC Rolled Ball Screws Standard Nut
HIWIN Ball screws consist of a screw spindle and a nut integrated with rolling elements that cycle through a return mechanism. Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines. Hiwin Corporation provides a wide range of ballscrew configurations to satisfy your special application requirements. Hiwin has the capability of producing JIS C0 class ground ballscrews, and DIN 5 class (up to 23 microns) for precision rolled ballscrews. Ballscrew O.D. ranging from 4mm to 120mm, and with Dm-N values up to 220,000.
The major differences between a rolled and ground ballscrew are the manufacturing process, the lead error definition and geometrical tolerances. Hiwin rolled ballscrews are made through a rolling process of the screw spindle instead of a grinding process. Rolled ballscrews provide smooth movement and low friction which can be supplied quickly from stock, at a lower production cost.
Nominal Model | FSC type |
Part Number | R20-10K3-FSC-0.05 |
Threading Direction | Right |
Nominal Diameter | 20 mm |
Lead | 10 mm |
Number of Turns (Turn·Row) | C1 ( 3 ) |
Flange Type | Double cutting ball nut |
Product Code | Rolled |
Accuracy Grade | C7 |
Overall Length of Shaft | 3000 mm (Max length) |
Axial Clearance and Preload Value | P0 (ZERO Backlash) |
Number of Nut | Install one nut on a shaft |
Nut Surface Treatment | Standard |
Shaft Surface Treatment | Standard |
<
Screw part number | Ball nut part number |
2R12-10-1500-1500-0.05 | 2R12-10A1-FSW-0.05 |
2R12-10A1-FST-00 | |
2R15-10-3000-3000-0.05 | 2R15-10K3-FSC-0.05 |
2R15-10B1-FST-0.05 | |
2R15-10B1-FSW-0.05 | |
4R15-20-3000-3000-0.05 | 4R15-20A2-DFSW-0.05 |
4R16-16-3000-3000-0.05 | 4R16-16S2-DFSH-0.05 |
4R20-20-3000-3000-0.05 | 4R20-20S2-DFSH-0.05 |
4R20-20K4-DFSC-0.05 | |
4R20-20K2-FSC-0.05 | |
4R25-25-4500-4500-0.05 | 4R25-25S2-DFSH-0.05 |
4R32-32-4500-4500-0.05 | 4R32-32S2-DFSH-0.05 |
4R40-40-5600-5600-0.05 | 4R40-40S2-DFSH-0.05 |
4R50-50-5600-5600-0.05 | 4R50-50S2-DFSH-0.05 |
R8-2-800-800-0.05 | R8-2T4-FSI-0.05 |
R10-4-1500-1500-0.05 | R10-4B1-FSW-0.05 |
R12-4-1500-1500-0.05 | R12-4B1-FSW-0.05 |
R12-4T3-FSI-0.05(Round nut) | |
R12-4T3-FSIEW-0.05 | |
R16-5-3000-3000-0.05 | R16-5T3-FSI-0.05 |
R16-5T3-FSINW-0.05 | |
R16-10-3000-3000-0.05 | R16-10T3-FSI-0.05 |
R20-10-3000-3000-0.05 | R20-10B1-FSW-0.05 |
R20-10B1-FST-0.05 | |
R20-10-3000-3000-0.05(K3) | R20-10K3-FSC-0.05 |
R20-5-3000-3000-0.05 | R20-5T3-FSI-0.05 |
R20-5T4-FSI-0.05 | |
R25-10-4500-4500-0.05 | R25-10T3-FSI-0.05 |
R25-5-4500-4500-0.05 | R25-5T3-FSI-0.05 |
R25-5T4-FSI-0.05 | |
R32-10-4500-4500-0.05 | R32-10T3-FSI-0.05 |
R32-10T4-FSI-0.05 | |
R32-5-4500-4500-0.05 | R32-5T3-FSI-0.05 |
R32-5T4-FSI-0.05 | |
R40-10-5600-5600-0.05 | R40-10T3-FSI-0.05 |
R40-10T4-FSI-0.05 | |
R40-5-5600-5600-0.05 | R40-5T4-FSI-0.05 |
R50-10-5600-5600-0.05 | R50-10T4-FSI-0.05 |
R63-10-5600-5600-0.05 | R63-10T6-FSI-0.05 |
<
Screw part number | Ball nut part number |
2R12-10-1500-1500-0.05 | 2R12-10A1-FSW-0.05 |
2R12-10A1-FST-00 | |
2R15-10-3000-3000-0.05 | 2R15-10K3-FSC-0.05 |
2R15-10B1-FST-0.05 | |
2R15-10B1-FSW-0.05 | |
4R15-20-3000-3000-0.05 | 4R15-20A2-DFSW-0.05 |
4R16-16-3000-3000-0.05 | 4R16-16S2-DFSH-0.05 |
4R20-20-3000-3000-0.05 | 4R20-20S2-DFSH-0.05 |
4R20-20K4-DFSC-0.05 | |
4R20-20K2-FSC-0.05 | |
4R25-25-4500-4500-0.05 | 4R25-25S2-DFSH-0.05 |
4R32-32-4500-4500-0.05 | 4R32-32S2-DFSH-0.05 |
4R40-40-5600-5600-0.05 | 4R40-40S2-DFSH-0.05 |
4R50-50-5600-5600-0.05 | 4R50-50S2-DFSH-0.05 |
R8-2-800-800-0.05 | R8-2T4-FSI-0.05 |
R10-4-1500-1500-0.05 | R10-4B1-FSW-0.05 |
R12-4-1500-1500-0.05 | R12-4B1-FSW-0.05 |
R12-4T3-FSI-0.05(Round nut) | |
R12-4T3-FSIEW-0.05 | |
R16-5-3000-3000-0.05 | R16-5T3-FSI-0.05 |
R16-5T3-FSINW-0.05 | |
R16-10-3000-3000-0.05 | R16-10T3-FSI-0.05 |
R20-10-3000-3000-0.05 | R20-10B1-FSW-0.05 |
R20-10B1-FST-0.05 | |
R20-10-3000-3000-0.05(K3) | R20-10K3-FSC-0.05 |
R20-5-3000-3000-0.05 | R20-5T3-FSI-0.05 |
R20-5T4-FSI-0.05 | |
R25-10-4500-4500-0.05 | R25-10T3-FSI-0.05 |
R25-5-4500-4500-0.05 | R25-5T3-FSI-0.05 |
R25-5T4-FSI-0.05 | |
R32-10-4500-4500-0.05 | R32-10T3-FSI-0.05 |
R32-10T4-FSI-0.05 | |
R32-5-4500-4500-0.05 | R32-5T3-FSI-0.05 |
R32-5T4-FSI-0.05 | |
R40-10-5600-5600-0.05 | R40-10T3-FSI-0.05 |
R40-10T4-FSI-0.05 | |
R40-5-5600-5600-0.05 | R40-5T4-FSI-0.05 |
R50-10-5600-5600-0.05 | R50-10T4-FSI-0.05 |
R63-10-5600-5600-0.05 | R63-10T6-FSI-0.05 |
Single color box of original | Suitable carton size | Carton box for rail |
Remark: For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment. |
Single color box of original | Suitable carton size | Carton box for rail |
Remark: For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment. |
