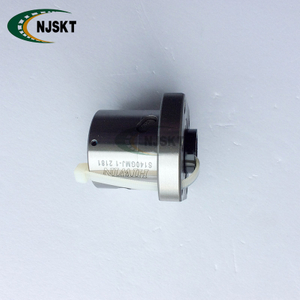

Shaft Diameter 40 Lead 40 C7 Rolled HIWIN 4040 Ball Screw 4R40-40S2-DFSH

Nominal Model:DFSH
Threading Direction:Right
Nominal Diameter:40 mm
Lead: 40 mm
Number of Turns (Turn·Row): S2
Flange Type: Double Cutting Ball nut
Product Code: Rolled
Accuracy Grade: C7
Overall Length of Shaft: 5600 mm each
Axial Clearance and Preload Value: P0
Nut Surface Treatment: Standard
Availability:
Quantity:
  • 4R40-40S2-DFSH

  • HIWIN

  • 4R40-40S2-DFSH-0.05

Diameter 32 Lead 32 Rolled C7 HIWIN 3232 Ball Screw 4R32-32S2-DFSH


HIWIN Ball screws consist of a screw spindle and a nut integrated with rolling elements that cycle through a return mechanism. Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines. Hiwin Corporation provides a wide range of ballscrew configurations to satisfy your special application requirements. Hiwin has the capability of producing JIS C0 class ground ballscrews, and DIN 5 class (up to 23 microns) for precision rolled ballscrews. Ballscrew O.D. ranging from 4mm to 120mm, and with Dm-N values up to 220,000.


The major differences between a rolled and ground ballscrew are the manufacturing process, the lead error definition and geometrical tolerances. Hiwin rolled ballscrews are made through a rolling process of the screw spindle instead of a grinding process. Rolled ballscrews provide smooth movement and low friction which can be supplied quickly from stock, at a lower production cost.


Nominal Model DFSH type
Part Number
4R40-40S2-DFSH
Threading Direction Right
Nominal Diameter 40 mm
Lead 40 mm
Number of Turns (Turn·Row) S2
Flange Type Double cutting ball nut
Product Code Rolled
Accuracy Grade C7
Overall Length of Shaft 5600 mm (Max length)
Axial Clearance and Preload Value P0 (ZERO Backlash)
Number of Nut Install one nut on a shaft
Nut Surface Treatment Standard
Shaft Surface Treatment Standard

HIWIN ball screw dimensions 型号_00

<

Screw part numberBall nut part number
2R12-10-1500-1500-0.052R12-10A1-FSW-0.05
2R12-10A1-FST-00
2R15-10-3000-3000-0.052R15-10K3-FSC-0.05
2R15-10B1-FST-0.05
2R15-10B1-FSW-0.05
4R15-20-3000-3000-0.054R15-20A2-DFSW-0.05
4R16-16-3000-3000-0.054R16-16S2-DFSH-0.05
4R20-20-3000-3000-0.054R20-20S2-DFSH-0.05
4R20-20K4-DFSC-0.05
4R20-20K2-FSC-0.05
4R25-25-4500-4500-0.054R25-25S2-DFSH-0.05
4R32-32-4500-4500-0.054R32-32S2-DFSH-0.05
4R40-40-5600-5600-0.054R40-40S2-DFSH-0.05
4R50-50-5600-5600-0.054R50-50S2-DFSH-0.05
R8-2-800-800-0.05 R8-2T4-FSI-0.05
R10-4-1500-1500-0.05R10-4B1-FSW-0.05
R12-4-1500-1500-0.05R12-4B1-FSW-0.05
R12-4T3-FSI-0.05(Round nut)
R16-5-3000-3000-0.05R16-5T3-FSI-0.05
R16-10-3000-3000-0.05R16-10T3-FSI-0.05
R20-10-3000-3000-0.05R20-10B1-FSW-0.05
R20-10-3000-3000-0.05(K3)R20-10K3-FSC-0.05
R20-5-3000-3000-0.05R20-5T3-FSI-0.05
R20-5T4-FSI-0.05
R25-10-4500-4500-0.05R25-10T3-FSI-0.05
R25-5-4500-4500-0.05R25-5T3-FSI-0.05
R25-5T4-FSI-0.05
R32-10-4500-4500-0.05R32-10T3-FSI-0.05
R32-10T4-FSI-0.05
R32-5-4500-4500-0.05R32-5T3-FSI-0.05
R32-5T4-FSI-0.05
R40-10-5600-5600-0.05R40-10T3-FSI-0.05
R40-10T4-FSI-0.05
R40-5-5600-5600-0.05R40-5T4-FSI-0.05
R50-10-5600-5600-0.05R50-10T4-FSI-0.05
R63-10-5600-5600-0.05R63-10T6-FSI-0.05
01

 Single color box of original


02

 Suitable carton size


03

Carton box for rail


05

  Remark:

   For the large quantity of the rail or linear carriage, We will package them with        wooden box before shipment.


Any questions and answers for HIWIN linear guides

S/N
Questions
Answers
1.
BrandHIWIN
2.
Fake or original genuine TaiWan HIWIN products you supply to customer?
We provide the 100% original Genuine TaiWan HIWIN products.
3.
How to gurantee of original HIWIN brand?
  1. You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods.

  2. Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.

4.
What kind of HIWIN Ball screws you can supply to customers?
We can supply Rolled and ground, FSW, FST, DFSW, DFSH, DFSC, FSI, FSC types etc.
5.
What length of screw shaft you provide to customers?

Max length of screw is 5600mm each, we can cut the screw length by customer's

6.
What preload of HIWIN Ball screw you supply to customers?
P0, P1, P2 ( contact sales to get the details)
7.
What accuracy of HIWIN Ball screw you can supply to customers?

Grade C7, (Rolled ball screw)

Grade C5, C3 ( Ground ball screws)

8.
Do you have stock for Ground ball screws
Yes, we have stocked for TBI ground ball screws of C5 and C3.
9.
Can you machined the screw?
Yes, we can machined them according Ball screw supports or customer's request.
10.
Can you sell the Ball nut and screw in separated?
Sure, ball nut and screw in separated is available.
