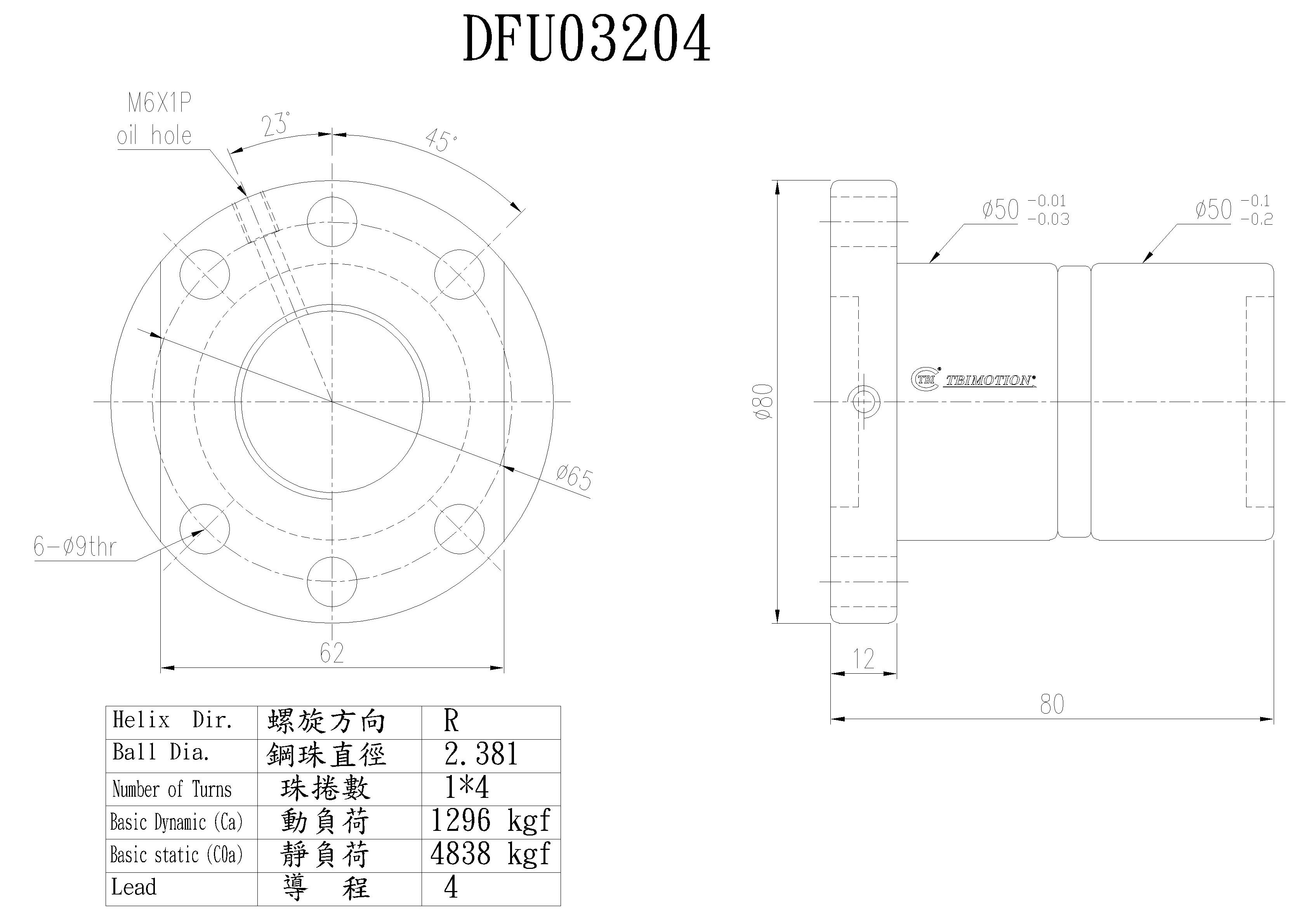

TBI Motion DFU03204-4 Linear Ball Screw Lead 4mm

Model Number: DFU03204-4
Diameter : 32mm Lead: 4mm Length of Screw: 10mm-4000mm
1pcs ball nut install in 1pcs Screw as one set
Accuracy Grade: C7,C5,C3
Quality Standard: ISO9001
Place of Origin: Taiwan, China

Quantity:
  • DFU03204-4
  • TBI

Country of origin: Made in TaiWan of China
TBI Ball screw is a mechanical linear actuator that translates rotational motion to linear motion with littlce friction, A threaded shaft provides a helical raceway for ball bearings which act as a precision screws, As well as being able to apply or withstand high thrust loads, they can do so with min internal friction, and they are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. They ball assembly acts as the nut while the threaded shaft is the screw, In contrast to convessary leadscrews, ball screws tend to be rather bulky, Due to the need to have a mechanism to re-circulate the balls.

TBI  ball screw are widely used into various industrial equipment and precision instruments.


Product Name
TBI Motion DFU03204-4 Linear Ball Screw Lead 4mm
Model
DFU03204-4
Brand
TBI
Structure
Ball Type
Screw Lenght
10mm-4000mm
Minimum Quantity:
1 piece ball nut and 1pcs Screw
Precision
C7,C5,C3
Preload
P0-P3
Lubrication
Grease,Oil
Material
S55C
Quality Standard
ISO9001



DFU03204-4

Packing Details  : 1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the customers' requirement


Delivery Details : 2-30 Working Days after order confirmed
