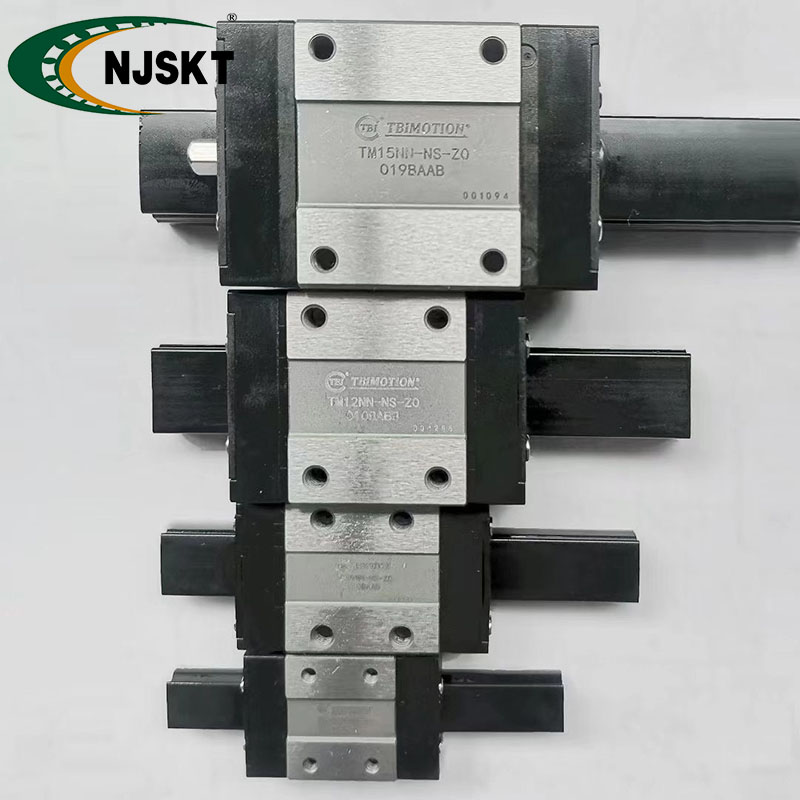

TM09NN
TBI
TM09NN-NS-Z0
Dust-Poof Design
The stainless bottom seal is the innovative new design of TBI Motion TM series. It prevents effectively the abnormal chips getting into the ball track from the bottom side of the block and keep the good running performance and extend the life time of the slider because the friction is low by keeping some small backlash between the slider and rail. Standard end seals provide extreme protection from dust. Metal scrapers to maintain ling service life and lower maintenance period. Unique low friction seal lips provide best smoothness and lower friction.
High Tensile Performance Stainless Steel Reinforcement Plate
High Tensile Performance Stainless Steel Reinforcement Plate Dual fully covered stainless steel plates design delivers the best coverage for plastic on each ends. Stainless steel screws are used to strength the rigidity, protection with end cap in order to sustain higher operational speed Vmax = 5 m/s², αmax= 300 m/s², When linear block is equipped with reinforcement plates and Dust-proof seal, it can also function as scraper.
High Loading and Moment Capacity Performance
TM Miniature Linear Guide series uses two row re-circulating methods with Gothic 45° contact angle on the rail groove to achieve equal load capacity in four directions. Larger steel balls are used to enhance the loading and torsion resistance performance in limited space.
Application
3D Printing, Industrial machinery, Electronic application, Semi-conductor industries etc.
Please noted that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have N (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).
Dust-Poof Design
The stainless bottom seal is the innovative new design of TBI Motion TM series. It prevents effectively the abnormal chips getting into the ball track from the bottom side of the block and keep the good running performance and extend the life time of the slider because the friction is low by keeping some small backlash between the slider and rail. Standard end seals provide extreme protection from dust. Metal scrapers to maintain ling service life and lower maintenance period. Unique low friction seal lips provide best smoothness and lower friction.
High Tensile Performance Stainless Steel Reinforcement Plate
High Tensile Performance Stainless Steel Reinforcement Plate Dual fully covered stainless steel plates design delivers the best coverage for plastic on each ends. Stainless steel screws are used to strength the rigidity, protection with end cap in order to sustain higher operational speed Vmax = 5 m/s², αmax= 300 m/s², When linear block is equipped with reinforcement plates and Dust-proof seal, it can also function as scraper.
High Loading and Moment Capacity Performance
TM Miniature Linear Guide series uses two row re-circulating methods with Gothic 45° contact angle on the rail groove to achieve equal load capacity in four directions. Larger steel balls are used to enhance the loading and torsion resistance performance in limited space.
Application
3D Printing, Industrial machinery, Electronic application, Semi-conductor industries etc.
Please noted that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have N (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).
Item # | TM09NN |
Series | TM series |
Block Type | Miniature type with End seal and slide sea |
Model Size | 9 mm |
Load Type | Light load of Z0 |
Block Mounting | Mounting from Top |
Block | Long miniature type block |
Preload Class | ZF- Slight clearance , Z0- No Preload Z1- Light Preload |
Precision code | N (normall) |
Dust Protection | Standard preotection (End seal and bottom seal |
Item # | TM09NN |
Series | TM series |
Block Type | Miniature type with End seal and slide sea |
Model Size | 9 mm |
Load Type | Light load of Z0 |
Block Mounting | Mounting from Top |
Block | Long miniature type block |
Preload Class | ZF- Slight clearance , Z0- No Preload Z1- Light Preload |
Precision code | N (normall) |
Dust Protection | Standard preotection (End seal and bottom seal |
Single color box of original | Suitable carton size | Carton box for rail |
Remark: For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment. |
Single color box of original | Suitable carton size | Carton box for rail |
Remark: For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment. |
