TBI 7mm Linear Guide Block TM07NN TM07NNS-N-Z0

TBI linear guide block TM07NN model size is 7mm, TBI miniature TM serise block, the block and rail material are all stainless steel, and the steel balls will be heldby miniature retainer to avoid balls from falling out, the block preload has Z0 no preload.
Availability:
Quantity:
  • TM07NN
  • TBI
  • TM07NNS-N-Z0

Dust-Poof Design
The stainless bottom seal is the innovative new design of TBI Motion TM series. It prevents effectively the abnormal chips getting into the ball track from the bottom side of the block and keep the good running performance and extend the life time of the slider because the friction is low by keeping some small backlash between the slider and rail. Standard end seals provide extreme protection from dust. Metal scrapers to maintain ling service life and lower maintenance period. Unique low friction seal lips provide best smoothness and lower friction.


High Tensile Performance Stainless Steel Reinforcement Plate
High Tensile Performance Stainless Steel Reinforcement Plate Dual fully covered stainless steel plates design delivers the best coverage for plastic on each ends. Stainless steel screws are used to strength the rigidity, protection with end cap in order to sustain higher operational speed Vmax = 5 m/s², αmax= 300 m/s², When linear block is equipped with reinforcement plates and Dust-proof seal, it can also function as scraper.

High Loading and Moment Capacity Performance
TM Miniature Linear Guide series uses two row re-circulating methods with Gothic 45° contact angle on the rail groove to achieve equal load capacity in four directions. Larger steel balls are used to enhance the loading and torsion resistance performance in limited space.


Application
3D Printing, Industrial machinery, Electronic application, Semi-conductor industries etc.


Please noted that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have N (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).

TBI-TM


Item #

TM07NN

Series
TM series
Block Type
Miniature type with End seal and slide sea
Model Size
7 mm
Load Type
Light load of Z0
Block Mounting
Mounting from Top
Block
Standard miniature type block

Preload Class

ZF- Slight clearance  ,

Z0- No Preload

Z1- Light Preload


Precision code

N (normall)

Dust Protection

Standard preotection (End seal and bottom seal

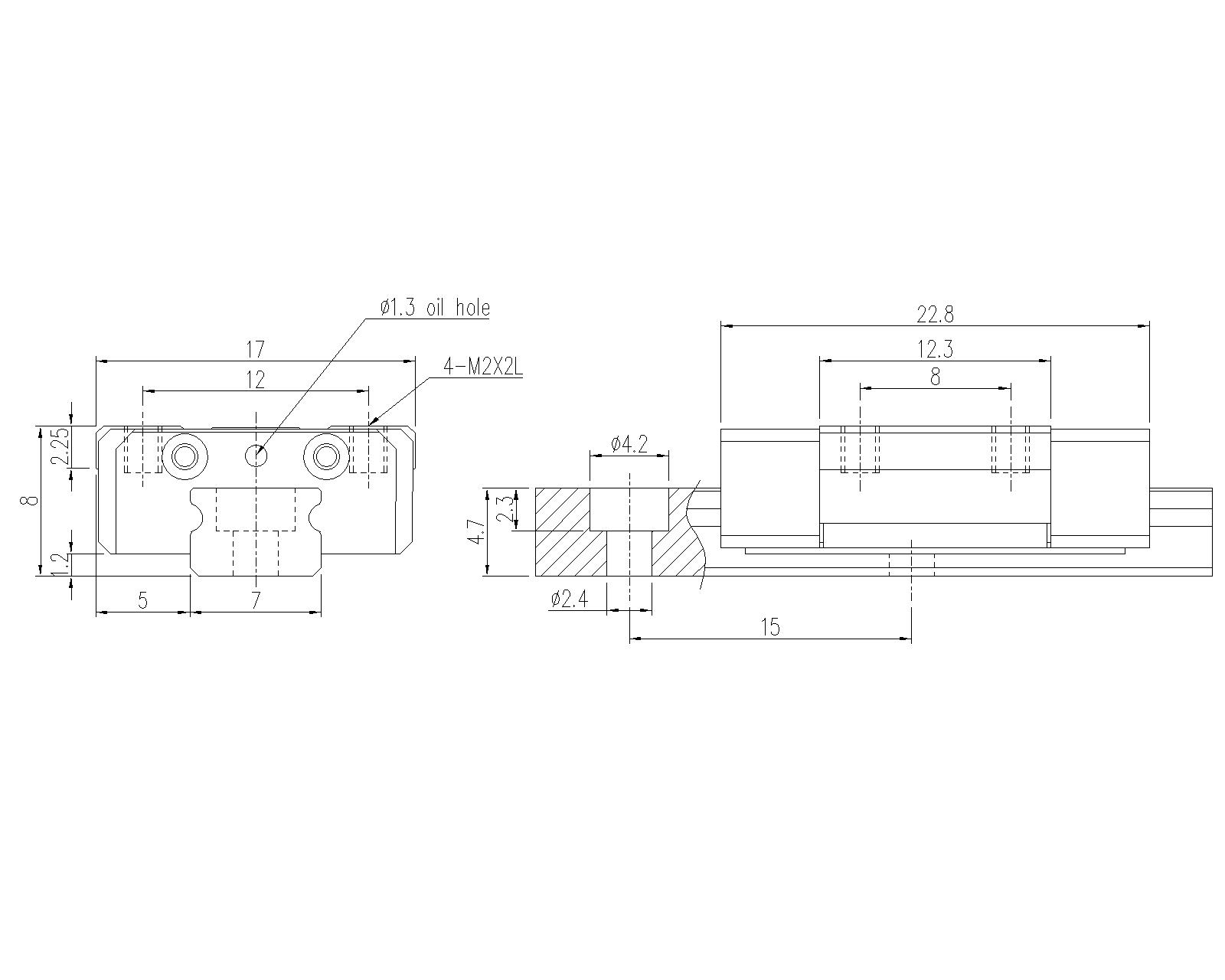

TM-SIZETM-SIZE 02

TM07NN

01

 Single color box of original


02

 Suitable carton size


03

Carton box for rail


05

  Remark:

   For the large quantity of the rail or linear carriage, We will package them with        wooden box before shipment.
