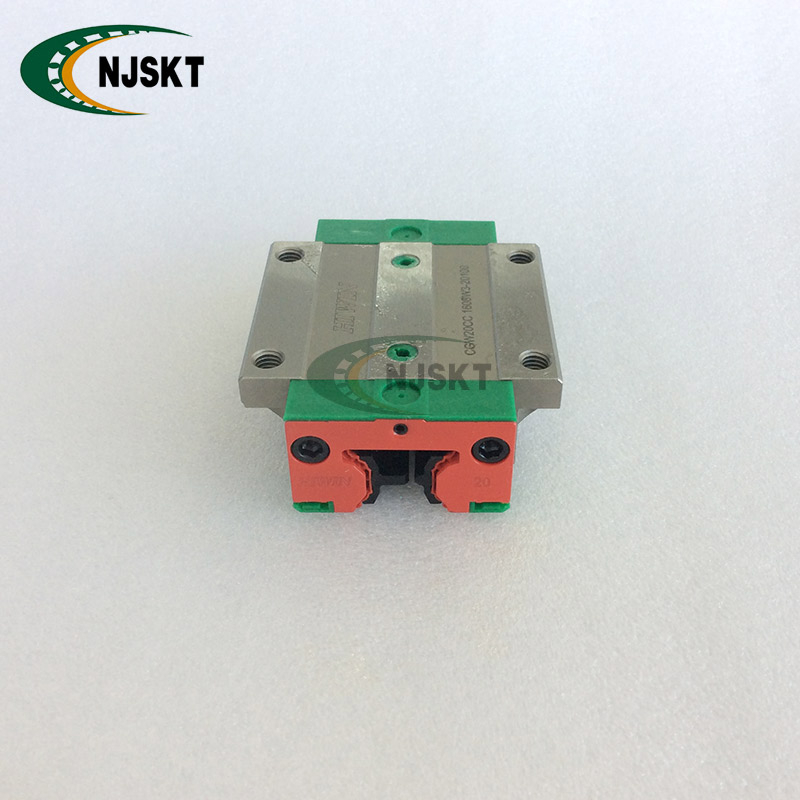

Original HIWIN Linear Bearing Guide CGW25HA Sliding Rail Guide

Item # : CGW25HA, CGW25HAZAC
Series: CG series
Block Type: Flange block
Model Size : 25mm
Load Type: Medium Load
Block Mounting: Mounting from Top
Block: Long type block
Distance from the Edge: Tolerance of E value for standard rail is ± 0.5mm.
Preload Class: Z0- Light Preload (0 ~ 0.02C) , ZA- Medium Preload (0.03 ~ 0.05C) , ZB-Heavy Preload (0.06 ~ 0.08C)
Availability:
Quantity:
  • CGW25HA

  • HIWIN

  • CGW25HA, CGW25HAZAC

Original HIWIN Linear Bearing Guide CGW25HA Sliding Rail Guide


TAIWAN HIWIN CG series linear guideways have moment load capacities up to 50% higher than standard HG Assemblies. The O-Type (back-to-back) bearing configuration and an integrated recirculation unit optimize bearing circulation greatly improving moment load capacities and promoting smooth motion. An optional stainless steel cover strip increases dust protection and promotes smooth block transition.


Please notat that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have C (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).

HIWIN CG LINNEAR GUIDE

Item #

CGW25HA, CGW25HAZAC

Series
CG series
Block Type
Flange type
Model Size
25 mm
Load Type
Medium load
Block Mounting
Mounting from Top
Block
Long type block

Preload Class

Z0- Light Preload (0 ~ 0.02C)  ,

ZA- Medium Preload (0.03 ~ 0.05C) ,

ZB-Heavy Preload (0.06 ~ 0.08C)


Precision code

C

Dust Protection

Standard preotection (End seal and bottom seal

HIWIN CGW linear guide<

Model No. Dimension of assembly (mm) Dimensons of block (mm) Dimensions of Rail Basic Dynamic Load rating  Basic Static Load rating
H H1 N W B B1 C L1 L G Mxl T WR HR D h d P C (N) C0 (N)
CGW15CA 24 4.3 16 47 38 4.5 30 39.2 58.2 5.3 M5 6 15 16.2 7.5 5.3 4.5 60 13800 18020
CGW15HA 24 4.3 16 47 38 4.5 30 53.6 72.6 5.3 M5 6 15 16.2 7.5 5.3 4.5 60 17600 25530
CGW20CA 30 4.6 21.5 63 53 5 40 52.5 74.9 12 M6 6.5 20 20.55 9.5 8.5 6 60 23700 30510
CGW20HA 30 4.6 21.5 63 53 5 40 68.5 90.5 12 M6 6.5 20 20.55 9.5 8.5 6 60 28600 39900
CGW25CA 36 6.1 23.5 70 57 6.5 45 61 84 12 M8 7 23 24.25 11 9 7 60 34960 43940
CGW25HA 36 6.1 23.5 70 57 6.5 45 78.6 104.6 12 M8 7 23 24.25 11 9 7 60 42180 57460
CGW30CA 42 7 31 90 72 9 52 69 96.9 12 M10 10.5 28 28.35 14 12.35 9 80 46000 55190
CGW30HA 42 7 31 90 72 9 52 92.3 118.9 12 M10 10.5 28 28.35 14 12.35 9 80 58590 78180
CGW35CA 48 7.6 33 100 82 9 62 79 111.4 12 M10 10.1 34 31.95 14 12 9 80 61170 7900
CGW35HA 48 7.6 33 100 82 9 62 109 137.4 12 M10 10.1 34 31.95 14 12 9 80 77900 112340
CGW45CA 60 9.7 37.5 120 100 10 80 97.8 137.8 12.9 M12 15.1 45 39.85 20 17 14 105 97630 133000
CGW45HA 60 9.7 37.5 120 100 10 80 132.3 172.3 12.9 M12 15.1 45 39.85 20 17 14 105 124430 217200
Model No. Dimension of assembly (mm) Dimensons of block (mm) Dimensions of Rail Basic Dynamic Load rating  Basic Static Load rating
H H1 N W B B1 C L1 L G Mxl T WR HR D h d P C (N) C0 (N)
CGH15CA 28 4.3 9.5 34 26 4 26 39.2 58.2 5.3 M4X5 6 15 16.2 7.5 5.3 4.5 60 13800 18020
CGH15HA 28 4.3 9.5 34 26 4 26 53.6 72.6 5.3 M4X5 6 15 16.2 7.5 5.3 4.5 60 17600 25530
CGH20CA 30 4.6 12 44 32 6 36 52.5 74.9 12 M5X6 8 20 20.55 9.5 8.5 6 60 23700 30510
CGH20HA 30 4.6 12 44 32 6 50 68.5 90.5 12 M5X6 8 20 20.55 9.5 8.5 6 60 28600 39900
CGH25CA 40 6.1 12.5 48 35 6.5 35 61 84 12 M6X8 8 23 24.25 11 9 7 60 34960 43940
CGH25HA 40 6.1 12.5 48 35 6.5 50 78.6 104.6 12 M6X8 8 23 24.25 11 9 7 60 42180 57460
CGH30CA 45 7 16 60 40 10 40 69 96.9 12 M8X10 9.5 28 28.35 14 12.35 9 80 46000 55190
CGH30HA 45 7 16 60 40 10 60 92.3 118.9 12 M8X10 9.5 28 28.35 14 12.35 9 80 58590 78180
CGH35CA 55 7.6 18 70 50 10 50 798 111.4 12 M8X12 10.2 34 31.95 14 12 9 80 61170 79300
CGH35HA 55 7.6 18 70 50 10 70 105 137.4 12 M8X12 10.2 34 31.95 14 12 9 80 77900 1123400
CGH45CA 70 9.7 20.5 86 60 13 60 97.8 137.8 12.9 M10X17 16 45 39.85 20 17 14 105 97630 133000
CGH45HA 70 9.7 20.5 86 60 13 80 132.3 172.3 12.9 M10X17 16 45 39.85 20 17 14 105 124430

217200

01

 Single color box of original


02

 Suitable carton size


03

Carton box for rail


05

  Remark:

   For the large quantity of the rail or linear carriage, We will package them with        wooden box before shipment.


Any questions and answers for HIWIN linear guides

S/N
Questions
Answers
1.
BrandHIWIN
2.
Fake or original genuine TaiWan HIWIN products you supply to customer?
We provide the 100% original Genuine TaiWan HIWIN products.
3.
How to gurantee of original HIWIN brand?
  1. You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods.

  2. Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.

4.
What kind of HIWIN linear guide you can supply to customers?
We can supply HG, EG, MG, RG, CG, WE types etc.
5.
What length of linear rail you provide to customers?

Max length of linear rail is 5600mm each, we can cut linear rail length by customer's

also supply the joint service if needs 1 pcs more than 5600mm.

6.
What preload of HIWIN linear guide you supply to customers?
Z0, ZA, ZB, ZF( contact sales to get the details)
7.
What accuracy of HIWIN linear guide you can supply to customers?

Grade C, H , P ( Stocked items)

Grade SP, UP  (We can help you to order them from TaiWan factory)

8.
Do you have stock for precision roller guides?
Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)
9.
Can you supply dust seals and self- lubricating systems of linear block?
Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available.
10.
Can you sell the linear block and linear rail in separated?
Sure, Linear block and linear rail in separated is available.
