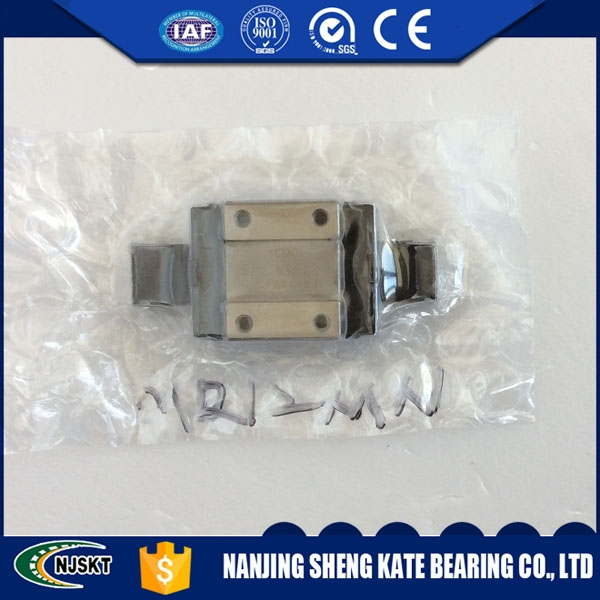

CPC MR12MN high precision linear guide MR12MNSSV0N

High precision linear guide MR12MNSSV0N CPC MR12MN

Guide Width or diameter: 12mm

Guide length: As customers requirements, Max length 1000mm

Rail mounting type: standard type, mounting from top

Block type: Standard type

Moldel Number: MR12MN

Place of origin: TAIWAN

Preload : V0,VS,V1

Accuracy grade: N,H,P

Material: Stainless steel, from Germany
Availability:
Quantity:
CPC MR12MN high precision linear guide MR12MNSSV0N

cpc mr12

CPC Linear Guide is the standard end seal design can be hermetiv and dustrptoof effectivly,CPC Linear Guide can also maintain the products life,Reduce lubrication grease consumption,and ensure a long-lasting lubrication effect,The special desgin of seal lip can generate few friction force without influrncing its running smoothness.

Country of origin :Made In TaiWan, This is Original part that we are selling.


Please be advised the CPC linear guide is the length of 1000mm each pieces,The butt-jointing is required when lengths exceed max. For detailed information,please contact me immediately.We can cut the length for your need.



CPC Linear guide Details:
A Different Name linear guide rail, slide block, linear motion, linear guide

CPC linear guideway, CPC linear module, CPC linear actuator,CPC linear guideway
Brand CPC
Model MR12MN. MR12MNSSV0N, MR12MNSUV0N
Rail lenght As customes requirements,Max length 1000mm
size: following list
Minimum quantity: 1 piece slide block and 1pcs  rails each
Precision: N, H, P
Pre-pressing V0,VS,V1
Lubrication: grease
Seal Types seales SS,SU,
Material: Stainless Steel
Packing original color box packaging,OrWooden Carrying Case.
Block Type Square type block

The Precision Data for CPC linear guide

.jpg

The preload for CPC linear guide

.jpg

Linear guide rail Mounting procedure

  1. Clear and dry the mounting surface.

  2. Coat each surface with low viscosity spindle oil,Then place the rail on the surface and then lightly tighten the mounting bolts temporarily.

  3. Place the carriage plate on the blocks carefuly and tighten the mounting bolts temporarily.

  4. Position the carriage plate by tightening the master block against the reference surface using the selected securing method and tighten the mounting bolts with a torque wrench.

.jpg

Linear block mounting procedure

  1. Clamp the reference rail in place and tighten the mounting bolts with a torque wrench,Making several passes to reach the desired torque.

  2. Please acrefully position the table with bearings onto the rails and tighten the non refernence blocks with torque rrench.

  3. Starting at one end,move the table along the rail and tighten the non reference rail slowly during swveral passes with a final pass using the torque wrench.Please don't over tiighten.


MR15ML SS MR15ML SU MR15ML EE MR15WL
MR15MN SS MR15MN SU MR15MN EE MR15WN
MR12ML SS MR12ML SU MR12ML EE MR12WL
MR12MN SS MR12MN SU MR12MN EE MR9WL
MR9ML SS MR9ML SU MR9ML EE MR9WN
MR9MN SS MR9MN SU MR9MN EE MR7WN
MR7ML SS MR7ML SU
MR7WL
MR7MN SS MR9MN SU

MR5ML


NR5MN



Linear Drawing of the CPC linear guide

MR..ML SS.jpg

MR..ML SS

Picture  Showing:

linear guide mr12mnssv0n

cpc linear guide mr12mn




RFQ:


Q:What is the accuracy leval of these raills?

A:The precision level is :N(normal),H(High),P (Precision),And we recommend block and rail assembled to be orders where high precision.
Q:  Can the blocks be preloaded?
A:Of couse,We can preloaded the block with rails.
Q:Is it possible we install 2 block bearing or more on one guide rail.
A:Sure,It's available.
Q:Is it possible to purchase only the Lienar Block?
A:yes, Noemanlly the Linear guide block and linear rail is a set delicered after action adjustment verification is complete.Thsu when purchasing onlyy the linear block,Please send the linear guide set or linearr rail  or drawing used with the purchasing linear block,After adjusting the action with the send linear guide set or linear rail we will deliver the purchased linear block with your sent items.

.Q:Newly purchased linear guide are ouly,why is this ?

A:This is anti-rust oil.Wipe this oil off before uesd to your machine.Note that rusting may occur if this oil is wiped off before use.
Q:Whar is the maximum usable length of the Linear guide?
A:The maximum manufaturing length of a rail varies from model to model. Normaliy 4000mm to 5600mmIt is possible to make the linear guide achieve unlimited linear motion casue rail can be jointed.
Q:Can all linear guide be made of metal?

A:In the standard linear guides,Materials such as resin and rubber are used in the end plates and seals,Full ball type linear block can be changed to metal end plates (stainless sreel and aluminum)without seals.
