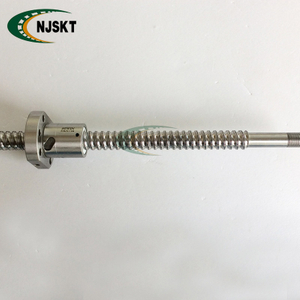

HIWIN cnc machine tool roll ball screw 40-5T4 ball screw R40-5T4-FSI-0.05

HIWIN cnc machine tool roll ball screw 40-5T4 ball screw R40-5T4-FSI-0.05 Made In TaiWan

Nut type: Single row double cutting nut

Screw diameter: 40 mm

Lead: 5 mm

Direction of helix: Right

No. of turn( circuits): Four row

Machined Service: The ends of the screw can be customized per your drawing

Produce: Rolled ball screw

Accuracy Grade: C7 or C5

Max length of screw: 5600 mm

Axial clearance : Zero Backlash
Availability:
Quantity:

HIWIN cnc machine tool roll ball screw 40-5T4 ball screw R40-5T4-FSI-0.05


Product Description


HIWIN Ball Screw Description:

  • Country of origin:Made in TaiWan

  • HIWIN Ball screw is a mechanical linear actuator that translates rotational motion to linear motion with littlce friction, A threaded shaft provides a helical raceway for ball bearings which act as a precision screws, As well as being able to apply or withstand high thrust loads, they can do so with min internal friction, and they are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. They ball assembly acts as the nut while the threaded shaft is the screw, In contrast to convessary leadscrews, ball screws tend to be rather bulky, Due to the need to have a mechanism to re-circulate the balls.

  • HIWIN ball screw are widely used into various industrial equipment and precision instruments

Dimaeter 40 mm lead 5mm Ball Screw 40-5T4 Details:
Name: Ball Screw,Ball bearing screw,CNC ball screw,
Brand:
HIWIN
Place of origin: Taiwan,China
Model No.: 40-5T3, R40-5T4-FSI-0.05, R40-5T4-FSI
Screw Diameter & Lead: Diameter: 40mm, Lead: 5mm
Direction of helix: Right,
Structure: Screw, single nut, steel ball
Flange Type: Without flange, Dutting cut flange
Overall length of screw (mm): Max Length 5600mm each,other length as your requirement
Material:

Screw: CF53

Nut: SNCM220

Steel Ball: SUJ2 (From Japan)

Hardeness:

Screw and ball nut: HRC 58-62

Steel ball: HRC 60 UP

Minimum quantity: 1 piece ball nut and 1pcs Screw
Accuracy of TBI (ISO): C7,C5,C3
Preload: P0,P1
Lubrication: Grease,Oil
End Machine:

According cutomer's requirements.

Precision Ball Screws which are accuracy CA,C7, C5 and have machined Shaft end at fixed side in advance are available.

Sample: Sample is available

hiwin ball screw Feature for Ball Screw:

  • High stiffness,

  • High efficienfor

  • Smooth operation

  • High rigidity and preload

  • Circulation method

  • High durability

  • High load & speed

  • High Precision & low noise

Application for Ball Screw:

  • High speed CNC machine

  • X-Y-Z Axes Heavy cutting machine tools.

  • Window machine

  • Engraving machine.

Advantage for Ball Screw:

HIWIN rolled screw are made through thread roller, Generally HIWIN rolled screw has a smoother operation while lowering friction and backlash, Therefore, it gradally replaced the traditional ACME screws and trapezoidal screw. Moreover, TBI rolled screws can eliminate axial play by preloading nut with a cost effective pricing compare to ground screw.


Drawing:



dimensions for hiwin ball screw

HIWIN Stocked Model number:

2R15-10K3-FSC-0.05

R20-5T3-FSI-0.05

R20-5T4-FSI-0.05

R25-5T3-FSI-0.05

R25-5T4-FSI-0.05

R32-5T3-FSI-0.05

R32-5T4-FSI-0.05

R32-10T3-FSI-0.05

R32-10T4-FSI-0.05

R40-5T4-FSI-0.05

R50-10T4-FSI-0.05

R63-10T4-FSI-0.05

Large lead:

4R16-16S2-DFSH-0.05

4R20-20S2-DFSH-0.05

4R25-25S2-DFSH-0.05

4R32-32S2-DFSH-0.05

4R40-40S2-DFSH-0.05

4R50-50S2-DFSH-0.05

All type ball screw to Show:

ball screw

ball screw


Customized Service:

TBI offers only the choice of rolled or ground as of now, In order to meet the needs of customer's requested design, we offer customized products. To reduce design process at customer, each Nut type is standardized.



Picture Show

ball screw 40-5t4ball screw 40-5t4ball screw r40-50t4-fsi-0.05hiwin 4005

cnc machine tool roll ball screw cnc machine tool roll ball screw cnc machine tool roll ball screw
