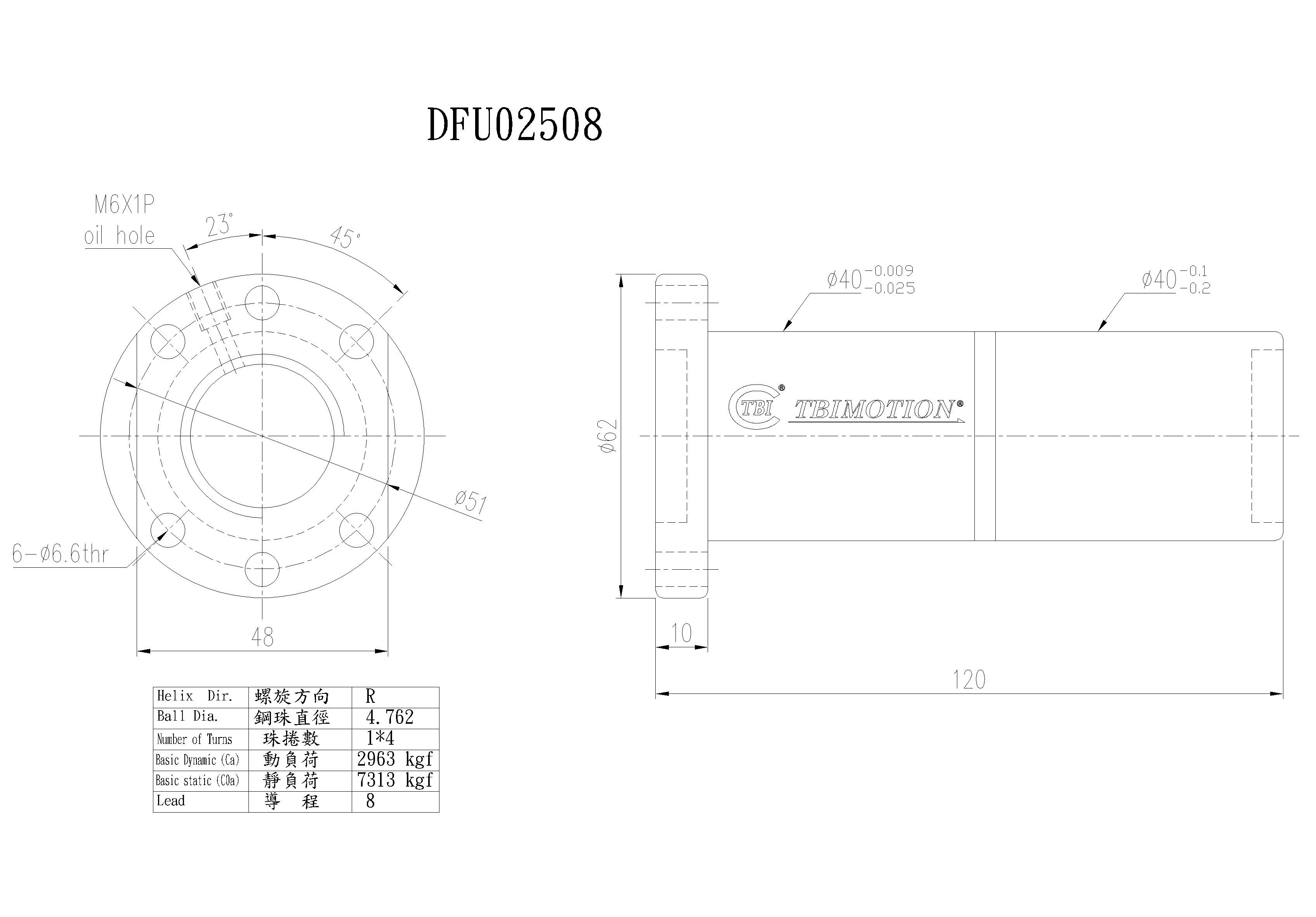

25mm Ball Screw TBI Motion DFU02508-4 3D Ballscrews

Model Number: DFU02508-4
Diameter : 25mm Lead: 8mm Length of Screw: 10mm-4000mm
1pcs ball nut install in 1pcs Screw as one set
Accuracy Grade: C7,C5,C3
Quality Standard: ISO9001
Place of Origin: Taiwan, China
Availability:
Quantity:
  • DFU02508-4

  • TBI

Country of origin: Made in TaiWan of China
TBI Ball screw is a mechanical linear actuator that translates rotational motion to linear motion with littlce friction, A threaded shaft provides a helical raceway for ball bearings which act as a precision screws, As well as being able to apply or withstand high thrust loads, they can do so with min internal friction, and they are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. They ball assembly acts as the nut while the threaded shaft is the screw, In contrast to convessary leadscrews, ball screws tend to be rather bulky, Due to the need to have a mechanism to re-circulate the balls.

TBI  ball screw are widely used into various industrial equipment and precision instruments.


Product Name
25mm Ball Screw TBI Motion DFU02508-4 3D Ballscrews
Model
DFU02508-4
Brand
TBI
Structure
Ball Type
Screw Lenght
10mm-4000mm
Minimum Quantity:
1 piece ball nut and 1pcs Screw
Precision
C7,C5,C3
Preload
P0-P3
Lubrication
Grease,Oil
Material
S55C
Quality Standard
ISO9001



DFU02508-4

Packing Details  : 1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the customers' requirement


Delivery Details : 2-30 Working Days after order confirmed


包装

Q: How can I place an order ?


A: Please list your requirement to us by via Email. Then we will send the offer to you soon, after order confirmation we will arrange your products

Q: Are you trading company or manufacturer ?


A: We are a professional bearing factory in China more than 10 years.

Q: How long is your delivery time?


A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?


A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?


A: Payment
