TBI Ball Splines 25mm SLF025 Hollow/Solid Spline Shafts

Model Number: SLF025
Diameter : 25mm
Length of Screw: 10mm-4000mm
1pcs ball nut install in 1pcs Spline Shaft as one set
Accuracy Grade: C7,C5,C3
Quality Standard: ISO9001
Place of Origin: Taiwan, China
Availability:
Quantity:
  • SLF025

  • TBI

The Design of TBI Ball Spline is to utilize the friction force through the contact of steel balls within in the Spline Nut and the grooves on the Spline Shaft. With TBI MOTION’s unique 40° angular contact design which enables the Ball spline delivers high sensitivity and extreme high load carrying capacity. The concept is optimal for the application involve with high speed, vibrates, impacts of loading and precise positioning requirements. Also when the Ball spline is used to function as linear bushing, the Ball spline provides ten times loading capacity than the linear bushing in the like dimensioned but with a compact profile. Namely, Durability and reliablility is the reason for choosing TBI Ball spline in your application.

  • High Load-Carrying Capacity

  • Zero Angular clerance/backlash

  • High Sensitivity

  • High Rigidity

  • EZY Mount on Design

Product Name
TBI Ball Splines 25mm SLF025 Hollow/Solid Spline Shafts
Model
SLF025
Brand
TBI
Structure
Ball Type
Screw Lenght
10mm-4000mm
Minimum Quantity:
1 piece ball nut and 1pcs Screw
Precision
C7,C5,C3
Preload
P0-P3
Lubrication
Grease,Oil
Material
Stainless Steel
Quality Standard
ISO9001

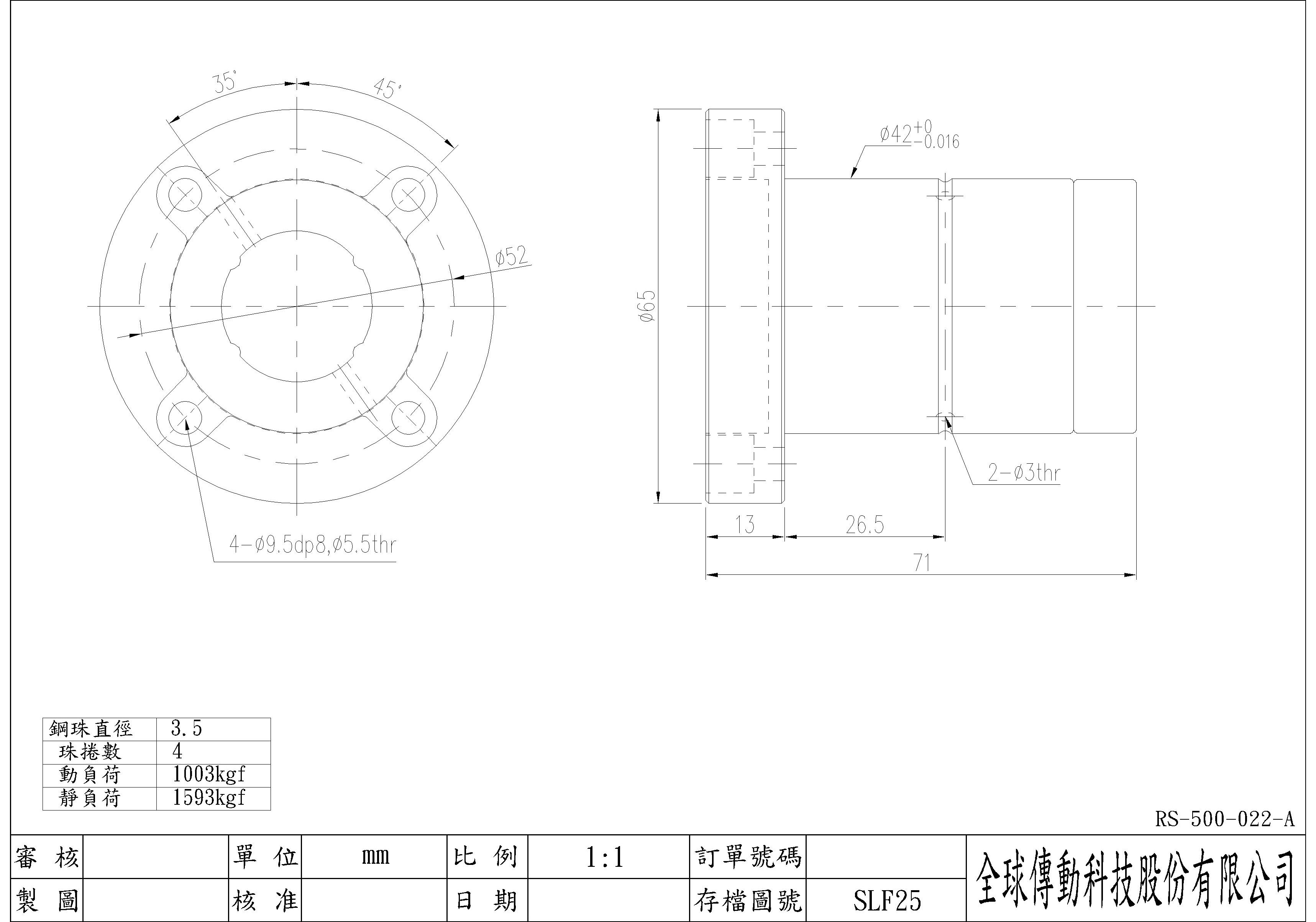

SLF25

Packing Details  : 1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the customers' requirement


Delivery Details : 2-30 Working Days after order confirmed


包装

Q: How can I place an order ?


A: Please list your requirement to us by via Email. Then we will send the offer to you soon, after order confirmation we will arrange your products

Q: Are you trading company or manufacturer ?


A: We are a professional bearing factory in China more than 10 years.

Q: How long is your delivery time?


A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?


A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?


A: Payment
