TRH55FL
TBI
TRH55FL-XN-Z0
TBI MOTION The Characteristics of TR Series
Smooth Movement
TBI MOTION circulation system of Linear Guide block is designed to perform smooth movement.
High Stability
TBI MOTION Linear Guide block is designed under TBI's exclusive patent that can increases depth of material to improve the strength capacity, prevent deflection and provide high rigidity
High Durability
TBI MOTION the exclusive contact point design promotes high rigidity. Moreover, self-aligning balances load rating in all directions. This design also improves performance in running accuracy and service life of the Linear Guide.
Easy Installation with Interchangeability
TBI MOTION Linear Guide is easy for installation even without fixture. The design of seal is able to combine with side seal or inner seal to save material.
Material for linear guide & linear block | ||
Item | Material | Hardness |
TR- BLOCK | SCM420H | HRC 58°-62° |
TR- RAIL | S55C | HRC 58°-62° |
TBI MOTION The Characteristics of TR Series
Smooth Movement
TBI MOTION circulation system of Linear Guide block is designed to perform smooth movement.
High Stability
TBI MOTION Linear Guide block is designed under TBI's exclusive patent that can increases depth of material to improve the strength capacity, prevent deflection and provide high rigidity
High Durability
TBI MOTION the exclusive contact point design promotes high rigidity. Moreover, self-aligning balances load rating in all directions. This design also improves performance in running accuracy and service life of the Linear Guide.
Easy Installation with Interchangeability
TBI MOTION Linear Guide is easy for installation even without fixture. The design of seal is able to combine with side seal or inner seal to save material.
Material for linear guide & linear block | ||
Item | Material | Hardness |
TR- BLOCK | SCM420H | HRC 58°-62° |
TR- RAIL | S55C | HRC 58°-62° |

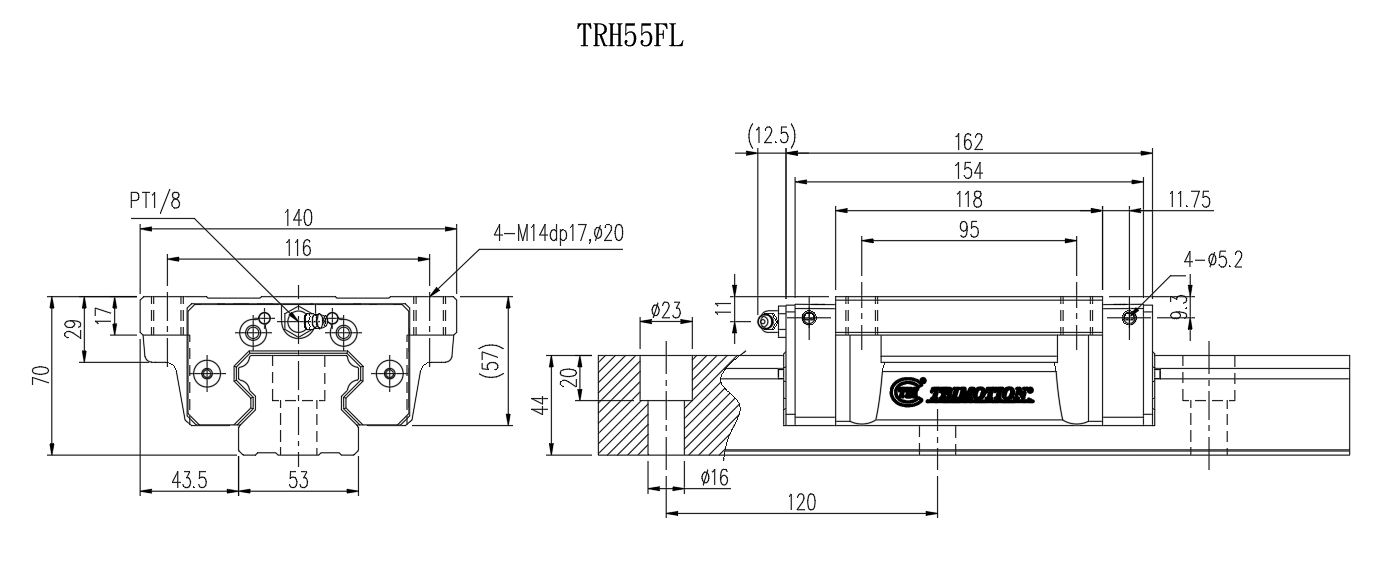

Item # | TRH55FL |
Series | TR series |
Model Size | 55 |
Block Type | Standard |
Height of Assembly Type | High-Assembly |
Flange Type | Flange type |
Length of block | Long type |
Load Type | Light load of Z0 |
Block Mounting | Mounting from Top |
Preload Class | ZF- Slight clearance , Z0- No Preload Z1- Light Preload |
Precision code | N (normall) |
Dust Protection | XN : Strong Bottom Seal+Strong Double-lip end seals |
Item # | TRH55FL |
Series | TR series |
Model Size | 55 |
Block Type | Standard |
Height of Assembly Type | High-Assembly |
Flange Type | Flange type |
Length of block | Long type |
Load Type | Light load of Z0 |
Block Mounting | Mounting from Top |
Preload Class | ZF- Slight clearance , Z0- No Preload Z1- Light Preload |
Precision code | N (normall) |
Dust Protection | XN : Strong Bottom Seal+Strong Double-lip end seals |
