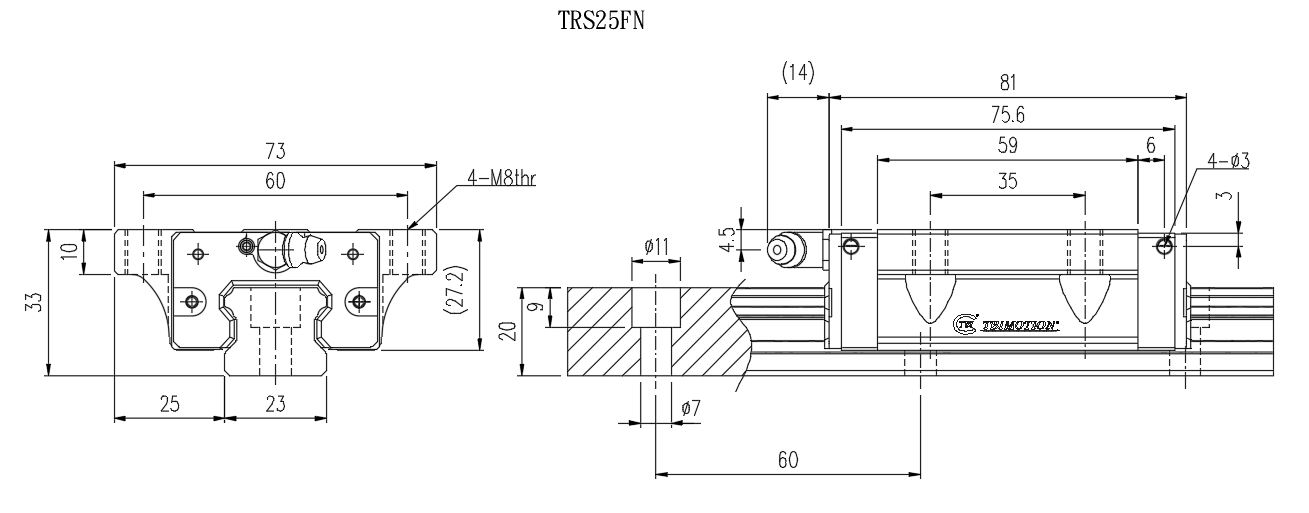

TBI Low Assembly Flange Type Linear Guide TRS25FN Block

TBI MOTION The Characteristics of TR Series

Smooth Movement

TBI MOTION circulation system of Linear Guide  block is designed to perform smooth movement.

High Stability

TBI MOTION Linear Guide block is designed under  TBI's exclusive patent that can increases depth of  material to improve the strength capacity, prevent  deflection and provide high rigidity

High Durability

TBI MOTION the exclusive contact point design promotes high rigidity. Moreover, self-aligning  balances load rating in all directions. This design also improves performance in running accuracy  and service life of the Linear Guide.

Easy Installation with Interchangeability

TBI MOTION Linear Guide is easy for installation even without fixture. The design of seal is able to  combine with side seal or inner seal to save material.
