Original HIWIN Stainless Steel Linear Bearing MGW15H Linear Guide Rail- NJSKT

Original HIWIN Stainless Steel Linear Bearing MGW15H Linear Guide Rail

TAIWAN HIWIN The MG series is a miniature linear guideway that comes in a compact size with a Gothic arch contact design that offers high stiffness and high rigidity against moment loads in all directions. The MG series also offers anti-corrosion protection which all material is in a special grade of stainless steel for compatibility in various working environments. The MG series is available in a narrow block type (MGN) and also with an enlarged width (MGW).

1. Tiny and light weight, suitable for miniature equipment.
2. All materials for block and rail, including rolling balls and ball retainers, are in special grade of stainless steel for anti-corrosion purpose.
3. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
4. Steel balls will be held by miniature retainer to avoid balls from falling out even when the blocks are removed from the rail installation.
5. Interchangeable types are available in certain precision grades.

Please notat that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have C (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).

HIWIN MGW linear guides

Item #	MGW15H, MGW15HZ0CM, MGW15HZFCM
Series	MG series
Block Type	Width type
Model Size	15 mm
Load Type	Medium load
Block Mounting	Mounting from Top
Block	Long type block
Preload Class	Z0- Light Preload (0 ~ 0C) , ZF- Light Clearance (4 ~ 10 µm) , Z1- Light Preload (0 ~ 0.02C)
Precision code	C
Dust Protection	Standard preotection (End seal and bottom seal)

HIWIN MGW

<

Model No.	Dimension of assembly (mm)			Dimensons of block (mm)										Dimensions of Rail								Mounting bolt for rail	Basic Dynamic Load rating	Basic Static Load rating	Static rated Moment			Weight
	H	H1	N	W	B	B1	C	L1	L	G	Gn	Mxl	H2	WR	WB	HR	D	h	d	P	E	(mm)	C (kN)	C0 (kN)	MR	MP	MY	Block	Rail
	H	H1	N	W	B	B1	C	L1	L	G	Gn	Mxl	H2	WR	WB	HR	D	h	d	P	E	(mm)	C (kN)	C0 (kN)	kN-m			kg	kg/m
MGW7C	9	1.9	5.5	25	19	3	10	21	31.2	-	1.2	M3X3	1.85	14	-	5.2	6	3.2	3.5	30	10	M3X6	1.37	2.06	15.7	7.14	7.14	0.05	0.51
MGW7H	9	1.9	5.5	25	19	3	19	30.8	41	-	1.2	M3X3	1.85	14	-	5.2	6	3.2	3.5	30	10	M3X6	1.77	3.14	23.45	15.53	15.53	0.029	0.51
MGW9C	12	2.9	6	30	21	4.5	12	27.5	39.3	-	1.2	M3X3	2.4	18	-	7	6	4.5	3.5	30	10	M3X8	2.75	4.12	40.12	18.96	18.96	0.04	0.91
MGW9H	12	2.9	6	30	23	3.5	24	38.5	40.7	-	1.2	M3X3	2.4	18	-	7	6	4.5	3.5	30	10	M3X8	3.43	5.89	54.54	34	34	0.057	0.91
MGW12C	14	3.4	8	40	28	6	15	31.3	46.1	-	1.2	M3X3.6	2.8	24	-	8.5	8	4.5	4.5	40	15	M4X8	3.92	5.59	70.34	27.8	27.8	0.071	1.49
MGW12H	14	3.4	8	40	28	6	28	45.6	60.4	-	1.2	M3X3.6	2.8	24	-	8.5	8	4.5	4.5	40	15	M4X8	5.1	8.24	102.7	57.37	57.37	0.103	1.49
MGW15C	16	3.4	9	60	45	7.5	20	38	54.8	5.2	M3	M4X4.2	3.2	42	23	9.5	8	4.5	4.5	40	15	M4X10	6.77	9.22	199.34	56.66	56.66	0.143	2.86
MGW15H	16	3.4	9	60	45	7.5	35	57	73.8	5.2	M3	M4X4.2	3.2	42	23	9.5	8	4.5	4.5	40	15	M4X10	8.93	13.38	299.01	122.6	122.6	0.215	2.86

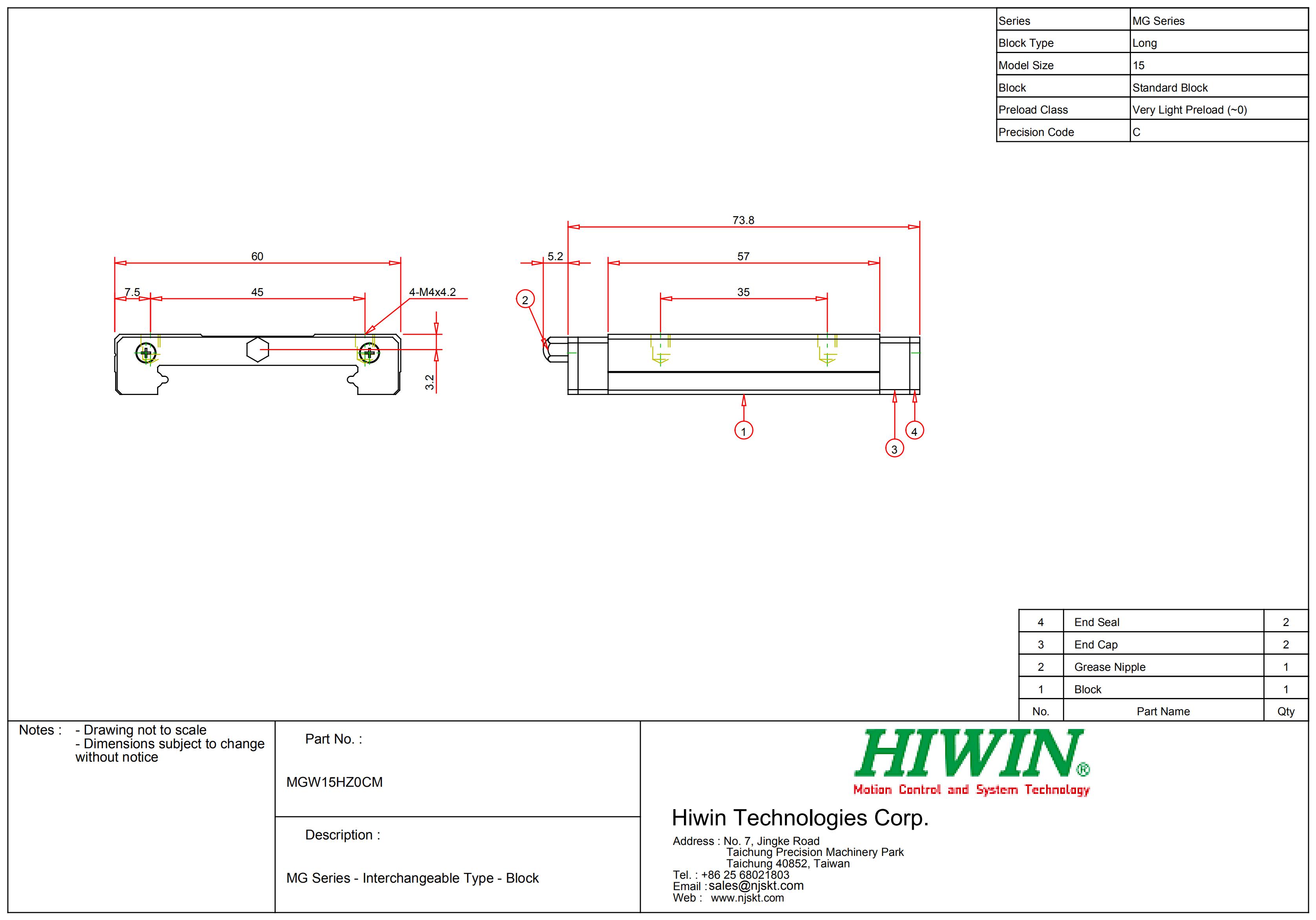

MGW15HZ0CM

Single color box of original

Suitable carton size

Carton box for rail

Remark:

For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment.

Any questions and answers for HIWIN linear guides

S/N	Questions	Answers
1.	Brand	HIWIN
2.	Fake or original genuine TaiWan HIWIN products you supply to customer?	We provide the 100% original Genuine TaiWan HIWIN products.
3.	How to gurantee of original HIWIN brand?	You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods. Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.
4.	What kind of HIWIN linear guide you can supply to customers?	We can supply HG, EG, MG, RG, CG, WE types etc.
5.	What length of linear rail you provide to customers?	Max length of linear rail is 5600mm each, we can cut linear rail length by customer's also supply the joint service if needs 1 pcs more than 5600mm.
6.	What preload of HIWIN linear guide you supply to customers?	Z0, ZA, ZB, ZF( contact sales to get the details)
7.	What accuracy of HIWIN linear guide you can supply to customers?	Grade C, H , P ( Stocked items) Grade SP, UP (We can help you to order them from TaiWan factory)
8.	Do you have stock for precision roller guides?	Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)
9.	Can you supply dust seals and self- lubricating systems of linear block?	Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available.
10.	Can you sell the linear block and linear rail in separated?	Sure, Linear block and linear rail in separated is available.
