Original HIWIN Linear Guide RGW45CC Linear Guide rail

Item # : RGW45CC, RGW45CCZAC
Series: RG series
Block Type: Flange block
Model Size : 45mm
Load Type: Medium Load
Block Mounting: Mounting from Top
Block: Roller type block
Distance from the Edge: Tolerance of E value for standard rail is ± 0.5mm.
Preload Class: Z0- Light Preload (0.02~ 0.04C) , ZA- Medium Preload (0.07 ~ 0.09C) , ZB-Heavy Preload (0.12 ~ 0.14C)

Quantity:
  • RGW45CC
  • HIWIN
  • RGW45CCZAC

Original HIWIN Linear Guide RGW45CC Linear Guide rail


TAIWAN HIWIN RG series features a roller as the rolling element instead of steel balls. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during loading, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions. The RG series linear guideway offers high performance for high-precision manufacturing and can achieve a longer service life than traditional ball bearing linear guideways.


Please notat that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have C (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).

HIWIN ROLLER GUIDE

Item #

RGW45CC, RGW45CCZAC

Series
RG series
Block Type
Flange type
Model Size
45 mm
Load Type
Medium load
Block Mounting
Mounting from Top
Block
Standard type block

Preload Class

Z0- Light Preload (0.02 ~ 0.04C)  ,

ZA- Medium Preload (0.07 ~ 0.09C) ,

ZB-Heavy Preload (0.12 ~ 0.14C)


Precision code

H

Dust Protection

Standard preotection (End seal and bottom seal

RGH series linear guide

<

Model No. Dimension of assembly (mm)                                                  Dimensons of block (mm) Dimensions of Rail Basic Dynamic Load rating  Basic Static Load rating  Static rated Moment Weight
H H1 N W B B1 C L1 L K1 K2 G Mxl T H2 H3 WR HR D h d P E C (N) C0 (N) MR MP MY Block Rail
kN-m kg kg/m
RGH15CA 28 4 9.5 34 26 4 26 45 68 13.4 4.7 5.3 M4X8 6 7.6 10.1 15 16.5 7.5 5.7 4.5 30 20 11.3 24 0.311 0.172 0.173 0.2 1.8
RGH20CA 34 5 12 44 32 6 36 57.5 86 15.8 6 5.3 M5X8 8 8.3 8.3 20 21 9.5 8.5 6 30 20 21.3 46.7 0.647 0.46 0.46 0.4 2.76
RGH20HA 34 5 12 44 32 6 50 77.5 106 18.8 6 5.3 M5X8 8 8.3 8.3 20 21 9.5 8.5 6 30 20 26.9 63 0.872 0.837 0.837 0.53 2.76
RGH25CA 40 5.5 12.5 48 35 6.6 35 64.5 97.9 20.75 7.25 12 M6X8 9.5 10.2 10 23 23.6 11 9 7 30 20 27.7 57.1 0.758 0.605 0.605 0.61 3.08
RGH25HA 40 5.5 12.5 48 35 6.6 50 81 114.4 21.5 7.25 12 M6X8 9.5 10.2 10 23 23.6 11 9 7 30 20 33.9 73.4 0.975 0.991 0.991 0.75 3.08
RGH30CA 45 6 16 60 40 10 40 71 109.8 23.5 8 12 M8X10 9.5 9.5 10.3 28 28 14 12 9 40 20 39.1 82.1 1.445 1.06 1.06 0.9 4.41
RGH30HA 45 6 16 60 40 10 60 93 131.8 24.6 8 12 M8X10 9.5 9.5 10.3 28 28 14 12 9 40 20 48.1 105 1.846 1.712 1.712 1.16 4.41
RGH35CA 55 6.5 18 70 50 10 50 79 124 22.5 10 12 M8X12 12 16 19.6 30.2 30.2 14 12 9 40 20 57.9 105.2 2.17 1.44 1.44 1.57 6.06
RGH35HA 55 6.5 18 70 50 10 72 106.5 151.5 25.25 10 12 M8X12 12 16 19.6 30.2 30.2 14 12 9 40 20 73.1 142 2.93 2.6 2.6 2.06 6.06
RGH45CA 70 8 20.5 86 60 13 60 106 153.2 31 10 12.9 M10X17 16 20 24 38 38 20 17 14 52.5 22.5 92.6 178.8 4.52 3.05 3.05 3.18 9.97
RGH45HA 70 8 20.5 86 60 13 80 139.8 187 37.9 10 12.9 M10X17 16 20 24 38 38 20 17 14 52.5 22.5 116 230.9 6.33 5.47 5.47 4.13 9.97
RGH55CA 80 10 23.5 100 75 12.5 75 125.5 183.7 37.75 12.5 12.9 M12X18 17.5 22 27.5 44 44 23 20 16 60 30 130.5 252 8.01 5.4 5.4 4.89 13.98
RGH55HA 80 10 23.5 100 75 12.5 95 173.8 232 51.9 12.5 12.9 M12X18 17.5 22 27.5 44 44 23 20 16 60 30 167.8 348 11.15 10.25 10.25 6.68 13.98
RGH65CA 90 12 31.5 126 76 25 70 160 232 60.8 15.8 12.9 M16X20 25 15 15 53 53 26 22 18 75 35 213 411.6 16.2 11.59 11.59 8.89 20.22
RGH65HA 90 12 31.5 126 76 25 120 223 295 67.3 15.8 12.9 M16X20 25 15 15 53 53 26 22 18 75 35 275.3 572.7 22.55 22.17 22.17 12.13 20.22

RGW linear guides

<

Model No. Dimension of assembly (mm)                  Dimensons of block (mm) Dimensions of Rail Basic Dynamic Load rating  Basic Static Load rating  Static rated Moment Weight
H H1 N W B B1 C L1 L K1 K2 G M T T1 H2 H3 WR HR D h d P E C (N) C0 (N) MR MP MY Block Rail
kN-m kg kg/m
RGW15CC 24 4 16 47 38 4.5 30 45 68 11.4 4.7 5.3 M5 6 6.95 3.6 6.1 15 16.5 7.5 5.7 4.5 30 20 11.3 24 0.311 0.173 0.173 0.22 1.8
RGW20CC 30 5 21.5 63 53 5 40 57.5 86 13.8 6 5.3 M6 8 10 4.3 4.3 20 21 9.5 8.5 6 30 20 21.3 46.7 0.647 0.46 0.46 0.47 2.76
RGW20HC 30 5 21.5 63 53 5 40 77.5 106 23.8 6 5.3 M6 8 10 4.3 4.3 20 21 9.5 8.5 6 30 20 26.9 63 0.827 0.837 0.837 0.63 2.76
RGW25CC 36 5.5 23.5 70 57 6.5 45 64.5 97.9 15.75 7.25 12 M8 9.5 10 6.2 6 23 23.6 11 9 7 30 20 27.7 57.1 0.758 0.605 0.605 0.72 3.08
RGW25HC 36 5.5 23.5 70 57 6.5 45 81 114.4 24 7.25 12 M8 9.5 10 6.2 6 23 23.6 11 9 7 30 20 33.9 73.4 0.975 0.991 0.991 0.91 3.08
RGW30CC 42 6 31 90 72 9 52 71 109.8 17.5 8 12 M10 9.5 10 6.5 7.3 28 28 14 12 9 40 20 39.1 82.1 1.445 1.06 1.06 1.16 4.41
RGW30HC 42 6 31 90 72 9 52 93 131.8 28.5 8 12 M10 9.5 10 6.5 7.3 28 28 14 12 9 40 20 48.1 105 1.846 1.712 1.712 1.52 4.41
RGW35CC 48 6.5 33 100 82 9 62 79 124 16.5 10 12 M10 12 13 9 12.6 34 30.2 14 12 9 40 20 57.9 105.2 2.17 1.44 1.44 1.75 6.06
RGW35HC 48 6.5 33 100 82 9 62 106.5 151.5 30.25 10 12 M10 12 13 9 12.6 34 30.2 14 12 9 40 20 73.1 142 2.93 2.6 2.6 2.4 6.06
RGW45CC 60 8 37.5 120 100 10 80 106 153.2 21 10 12.9 M12 14 15 10 14 45 38 20 17 14 52.5 22.5 92.6 178.8 4.52 3.05 3.05 3.43 9.97
RGW45HC 60 8 37.5 120 100 10 80 139.8 187 37.9 10 12.9 M12 14 15 10 14 45 38 20 17 14 52.5 22.5 116 230.9 6.33 5.47 5.47 4.57 9.97
RGW55CC 70 10 43.5 140 116 12 95 125.5 183.7 27.75 12.5 12.9 M14 16 17 12 17.5 53 44 23 20 16 60 30 130.5 252 8.01 5.4 5.4 5.43 13.98
RGW55HC 70 10 43.5 140 116 12 95 173.8 232 51.9 12.5 12.9 M14 16 17 12 17.5 53 44 23 20 16 60 30 167.8 348 11.15 10.25 10.25 7.61 13.98
RGW65CC 90 12 53.5 170 142 14 110 160 232 40.8 15.8 12.9 M16 22 23 15 15 63 53 26 22 18 75 35 213 411.6 16.2 11.59 11.59 11.63 20.22
RGW65HC 90 12 53.5 170 142 14 110 223 295 72.3 15.8 12.9 M16 22 23 15 15 63 53 26 22 18 75 35 275.3 572.7 22.55 22.17 22.17 16.58 20.22
01

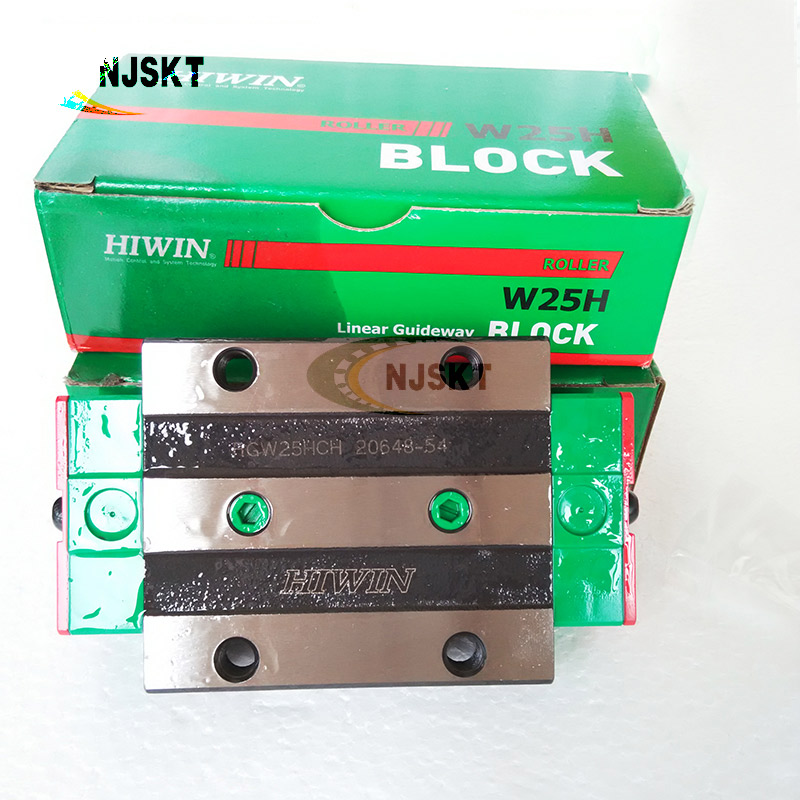

 Single color box of original


02

 Suitable carton size


03

Carton box for rail


05

  Remark:

   For the large quantity of the rail or linear carriage, We will package them with        wooden box before shipment.


Any questions and answers for HIWIN linear guides

S/N
Questions
Answers
1.
BrandHIWIN
2.
Fake or original genuine TaiWan HIWIN products you supply to customer?
We provide the 100% original Genuine TaiWan HIWIN products.
3.
How to gurantee of original HIWIN brand?
  1. You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods.

  2. Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.

4.
What kind of HIWIN linear guide you can supply to customers?
We can supply HG, EG, MG, RG, CG, WE types etc.
5.
What length of linear rail you provide to customers?

Max length of linear rail is 5600mm each, we can cut linear rail length by customer's

also supply the joint service if needs 1 pcs more than 5600mm.

6.
What preload of HIWIN linear guide you supply to customers?
Z0, ZA, ZB, ZF( contact sales to get the details)
7.
What accuracy of HIWIN linear guide you can supply to customers?

Grade C, H , P ( Stocked items)

Grade SP, UP  (We can help you to order them from TaiWan factory)

8.
Do you have stock for precision roller guides?
Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)
9.
Can you supply dust seals and self- lubricating systems of linear block?
Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available.
10.
Can you sell the linear block and linear rail in separated?
Sure, Linear block and linear rail in separated is available.
