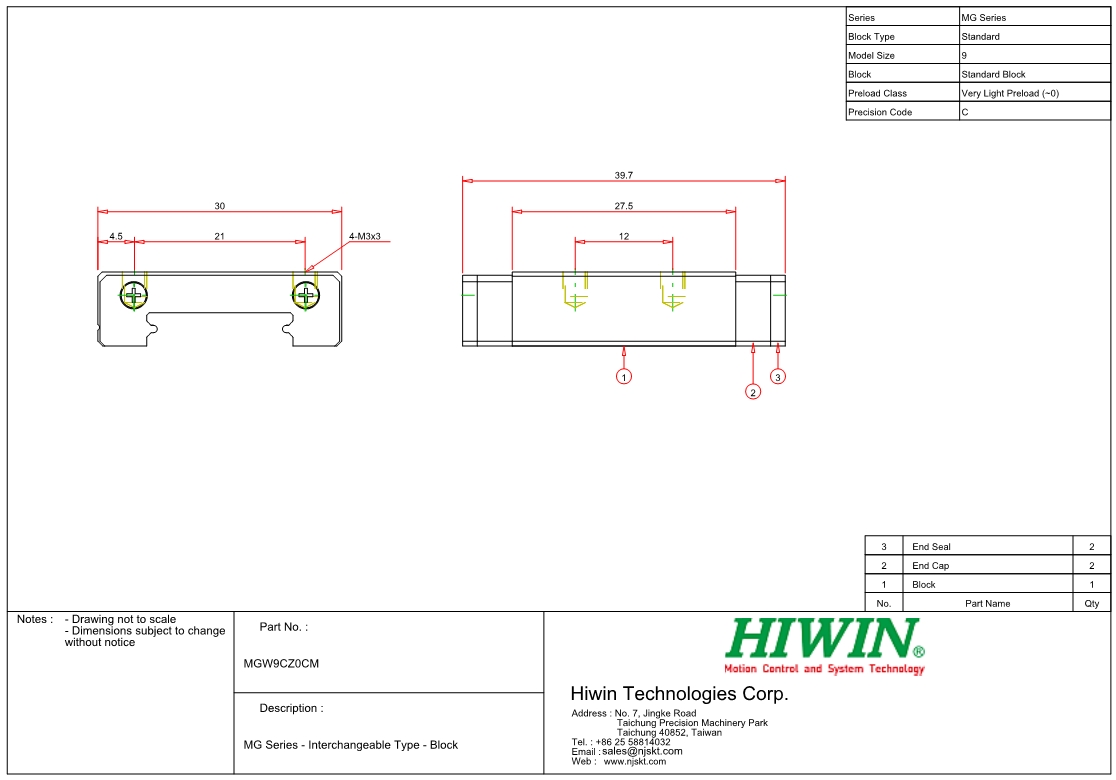

Item # : MGW9C, MGW9CZ0CM, MGW9CZFCM
Series: MG series,
Model Size : 9 mm
Block Mounting: Mounting from Top
Block: Standard Width type block
Distance from the Edge: Tolerance of E value for standard rail is ± 0.5mm.
Preload Class: Z0, Very Light Preload (~0), Light Clearance (4 ~ 10 µm), Z1, Light Preload (0 ~ 0.02C)
Original HIWIN Linear Guide 9mm MGW9C 3D Printer Linear Block
TAIWAN HIWIN The MG series is a miniature linear guideway that comes in a compact size with a Gothic arch contact design that offers high stiffness and high rigidity against moment loads in all directions. The MG series also offers anti-corrosion protection which all material is in a special grade of stainless steel for compatibility in various working environments. The MG series is available in a narrow block type (MGN) and also with an enlarged width (MGW).
1. Tiny and light weight, suitable for miniature equipment.
2. All materials for block and rail, including rolling balls and ball retainers, are in special grade of stainless steel for anti-corrosion purpose.
3. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
4. Steel balls will be held by miniature retainer to avoid balls from falling out even when the blocks are removed from the rail installation.
5. Interchangeable types are available in certain precision grades.
Please notat that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have C (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).
|Item # || |
MGW9C, MGW9CZ0CM, MGW9CZFCM
|Series ||MG series|
|Block Type ||Width type |
|Model Size ||9 mm |
|Load Type ||Medium load |
|Block Mounting ||Mounting from Top |
|Block ||Standard type block |
Z0- Light Preload (0 ~ 0C) ,
ZF- Light Clearance (4 ~ 10 µm) ,
Z1- Light Preload (0 ~ 0.02C)
|Precision code || |
|Dust Protection || |
Standard preotection (End seal and bottom seal)
|Model No.||Dimension of assembly (mm)||Dimensons of block (mm)||Dimensions of Rail||Mounting bolt for rail||Basic Dynamic Load rating||Basic Static Load rating||Static rated Moment||Weight|
|H||H1||N||W||B||B1||C||L1||L||G||Gn||Mxl||H2||WR||WB||HR||D||h||d||P||E||(mm)||C (kN)||C0 (kN)||MR||MP||MY||Block||Rail|
Single color box of original
Suitable carton size
Carton box for rail
For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment.
Any questions and answers for HIWIN linear guides
|2. ||Fake or original genuine TaiWan HIWIN products you supply to customer?||We provide the products.|
|3.||How to gurantee of original HIWIN brand?|
|4. ||What kind of HIWIN linear guide you can supply to customers?||We can supply HG, EG, MG, RG, CG, WE types etc.|
|5.||What length of linear rail you provide to customers?|
Max length of linear rail is 5600mm each, we can cut linear rail length by customer's
also supply the joint service if needs 1 pcs more than 5600mm.
|6.||What preload of HIWIN linear guide you supply to customers?||Z0, ZA, ZB, ZF( contact sales to get the details)|
|7.||What accuracy of HIWIN linear guide you can supply to customers?|
Grade C, H , P ( Stocked items)
Grade SP, UP (We can help you to order them from TaiWan factory)
|8.||Do you have stock for precision roller guides?||Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)|
|9.||Can you supply dust seals and self- lubricating systems of linear block?||Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available. |
|10.||Can you sell the linear block and linear rail in separated?||Sure, Linear block and linear rail in separated is available. |
