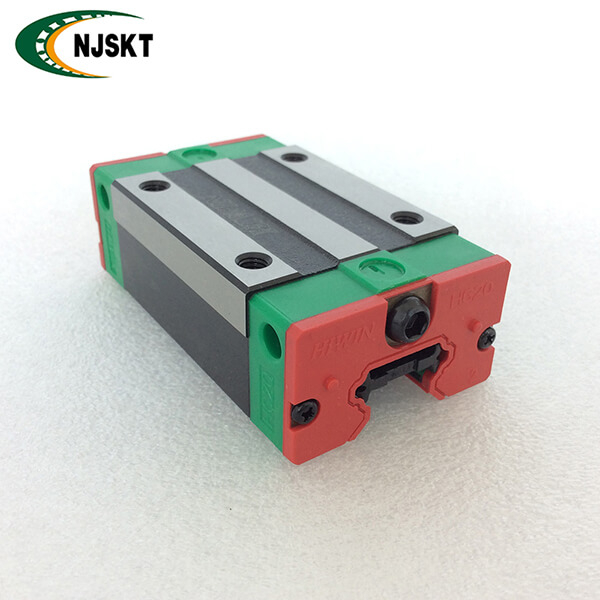

HIWIN Rail 55mm Linear Motion Guide HGH55CA Linear Carriage

Item # : HGH55CA, HGH55CAZAC
Series: HG series
Block Type: Square type
Model Size : 55 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)
Availability:
Quantity:
  • HGH55CA

  • HIWIN

  • HGH55CAZAC

HIWIN Rail 55mm Linear Motion Guide HGH55CA Linear Carriage


HIWIN HG type 55mm linear guide HGR55 max length are 4000mm each, if needs the lengths of more than 4000mm each pcs, we can provide the joint service, so will become the length according your request. HIWIN Linear carriage HGH55CA are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error, Thus, TaiWan HIWIN HG type linear guideways can achieve a long life with high speed, high accuracy and smotth linear motion.

hiwin hg linear guide


Item #
HGH55CA, HGH55CAZAC
Series
HG series
Block Type
Square type
Model Size
55 mm
Load Type
Heavy load
Block Mounting
Mounting from Top
Block
Standard type block

Preload Class

Light Preload (0-0.02 C),

Medium Preload (0.05-0.07 C)

Precision code

C

Dust Protection

Standard preotection (End seal and bottom seal)

HG































HGH series linear guide size

HIWIN linear guide HGH series

01

 Single color box of original


02

 Suitable carton size


03

Carton box for rail


05

  Remark:

   For the large quantity of the rail or linear carriage, We will package them with        wooden box before shipment.


  1. HIWIN guideways are supplied with a coating of anti-corrosion oil before being shipped. Please clean the oil before  moving or running the blocks.

    Linear Guide Mounting Instructions 01


  2. Recognition of master and subsidiary rails: For non-interchangeable type linear guideways, there are some  differences between the master rail and subsidiary rail. The accuracy of the master rail’s datum plane is better than  the subsidiary’s and it can be a reference side for  installation. There is a mark “MA” printed on the  rail. Check for the correct order before starting  the installation. The rail number of master is an  odd number and the rail number of subsidiary is  an even number. Please install the rails according  to the indication and carry on the installation  according to the order for multi-rails installment (e. g.: 001 pairs 002 ; 003 pairs 004 etc.)

    Linear Guide Mounting Instructions 02

  3. Recognition of datum plane: The datum plane (B) of rail is  the side indicated by the arrow, which is marked on the top  surface of the rail. The datum plane of block is smooth ground  surface which shows as D in Figure 2.

    Linear Guide Mounting Instructions 03

  4. Butt-joint rail: Butt-joint rail should be installed by following  the arrow sign and ordinal number which is marked on the  surface of each rail as shown in the figure 3. To avoid accuracy  problems due to discrepancies between the 2 rails such as for  matched pair, butt-joint rails, the jointed positions should be  staggered as shown in figure 4.

    Linear Guide Mounting Instructions 04

  5. Do not remove blocks from rails when assembling the guideways in machines as far as possible. Please use block inserts  (please see Figure 5) if it is necessary to remove/ mount block from/ onto rail.

    Linear Guide Mounting Instructions 05Linear Guide Mounting Instructions 05-1

  6. Please do not randomly mix block units and rails for non  interchangeable type to avoid any installation problem.


  7. To ensure the straightness of rail, please tighten the mounting  bolts sequentially with a torque wrench to the specified torque. (Refer to HIWIN Technical Information).
