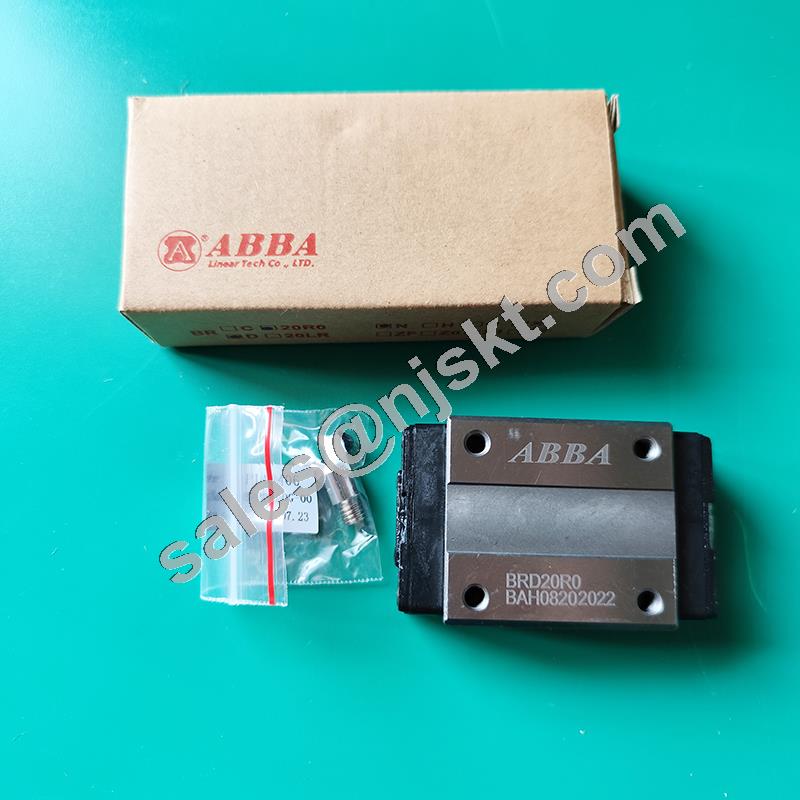

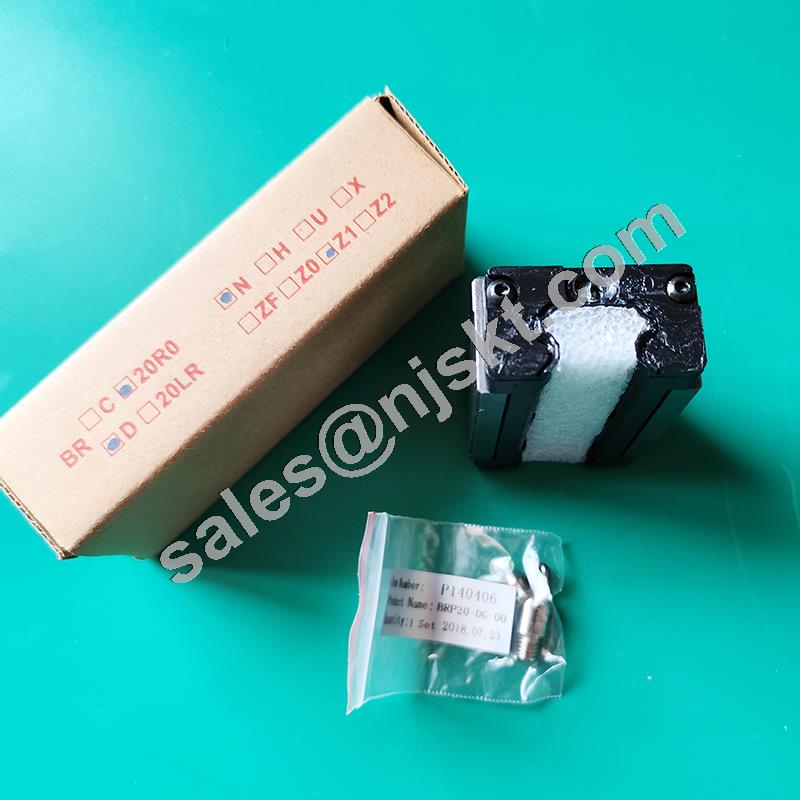

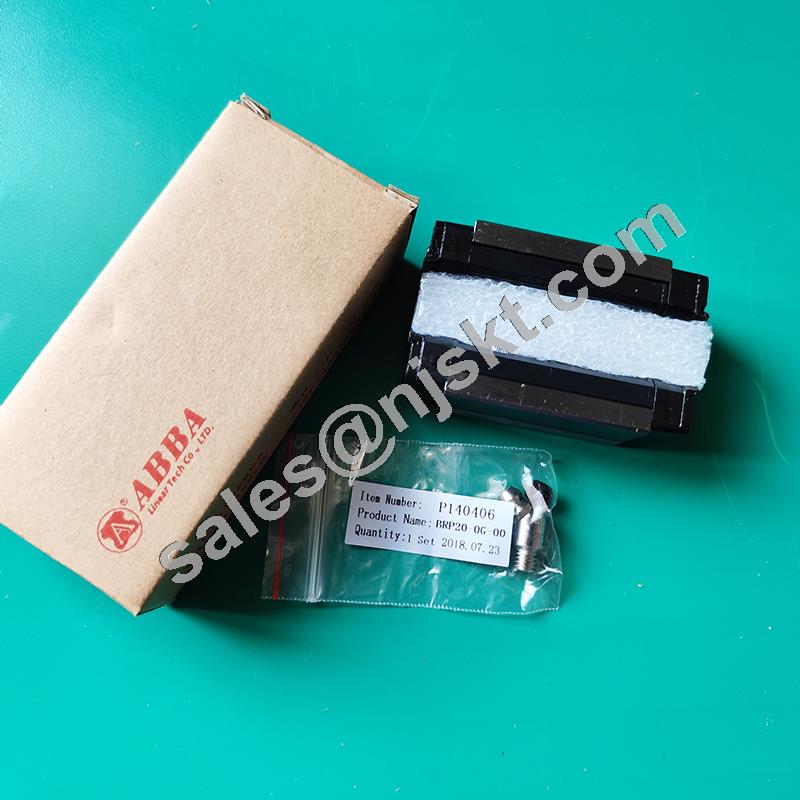

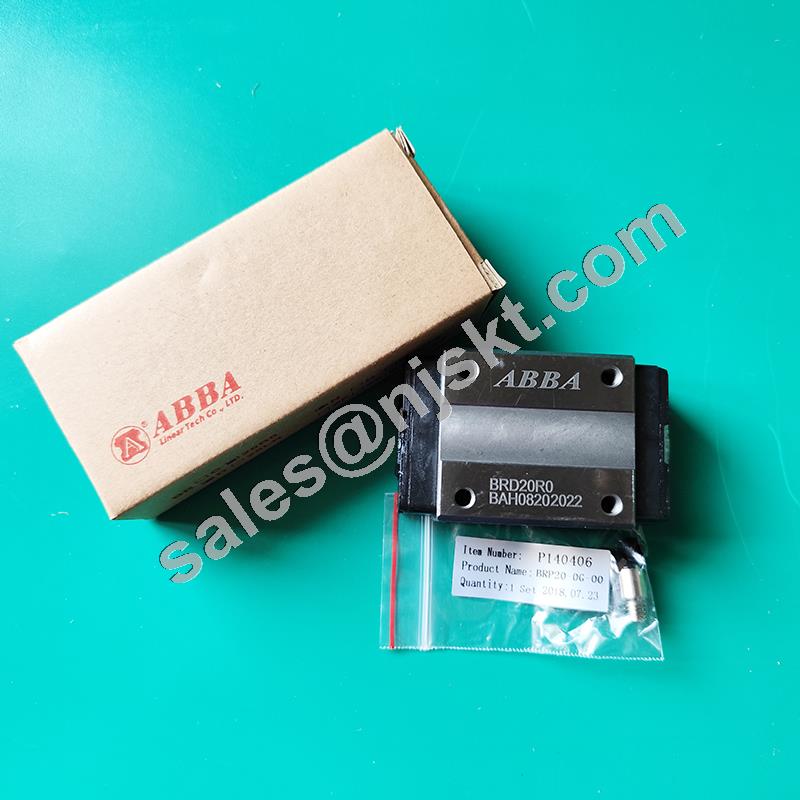

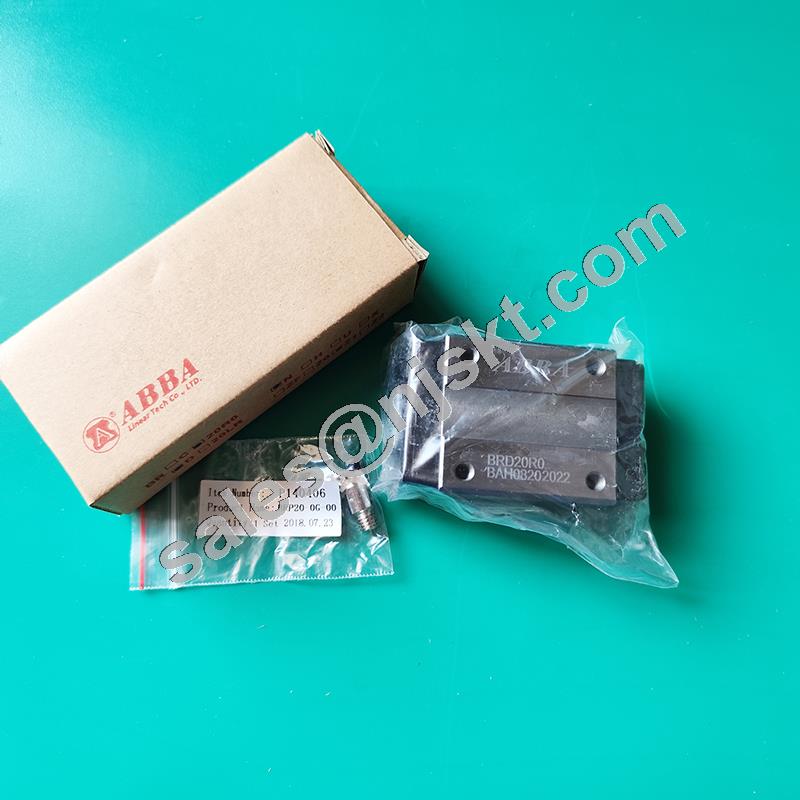

BRH20BS ABBA Linear Guide BRD20R0

1. Block type:  BRD type
2. Dimension: 20
3. Width of rail: Standard
4. Length of block: Slim-line block( Standard length, Extended height)
5. Material: SCM420H for block, S55C for rail
6. Quantity of block: Mark 1 when there is only 1 runner block
7. Accessory code: Standard front seal (only end seal)
8. Accuracy Grade: Normal N
9.  Preload: Z0 (No preload), Z1 Light preload, Preload=0~0.02C
10. Two sets per axis: II (no need to be mared when there is only one rail)
11. Joint rail: N and H class and their parallel used products are allowed to be joint rails.
12. Block & Rail Surface Treatment；Standard, if need other surface on the block or rails, please contact NJSKT team.

Availability:
Quantity:
Inquire Add to Basket

  • BRH20BS

  • TBI

  • BRD20R0

The Characteristics of ABBA Linear guide


  1. Built-in long life lubrication(patent)

  2. Equivalent loading capacity in four directions

  3. Smooth running due to new ball re-circulation(patent)

  4. High rigidity: 4-row angular contact

  5. International standard dimension

  6. High accuarcy, low friction, low maintenance High speed,low noise

  7. Integral all-round sealing

  8. Interchangeability

  9. Green production


Structure of ABBA LINEAR GUIDE

Material for linear guide & linear block
Item Material
Hardness
BR- BLOCK
 SCM420H
 HRC 58°-62°
BR- RAIL
 S55C
 HRC 58°-62°

ABBA Product overview_800ABBA Rail drilling method_00

Item #

BRD20R0
Series
 BR series
Model Size

20
Block Type
 Short End Cap
Height of Assembly Type High-Assembly
Flange Type Square type
Length of block
 Slim-line block( Standard length, Extended height)
Load Type
 Light load of Z0
Block Mounting
 Mounting from Top

Preload Class

Z0- No Preload

Z1- Light Preload
Precision code

N (normall)
Dust Protection
 Standard front seal (only end seal)






ABBA ordering key 03ABBA ordering keyABBA ordering key 02

BRC-R0, BRC-LR, BRD-R0, BRC-LR

Maintenance and usage of ABBA Linear Guide 导轨维护_00

01

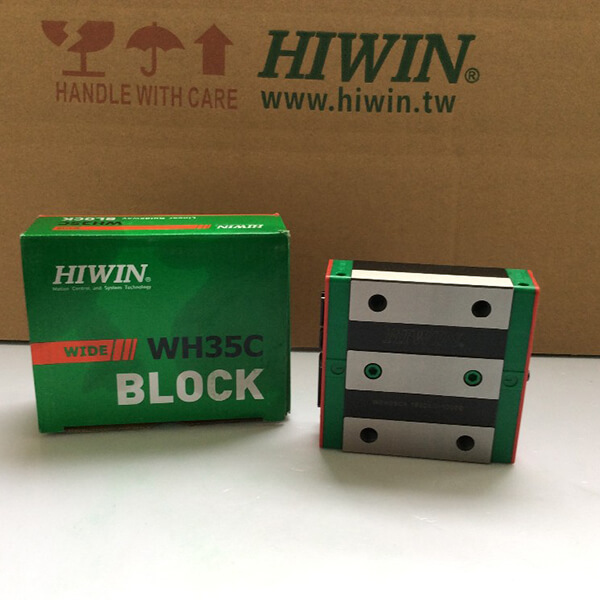

 Single color box of original

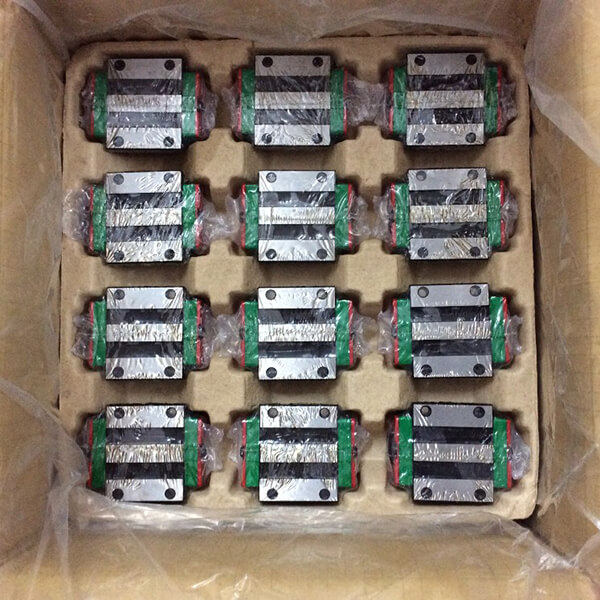

02

 Suitable carton size
03

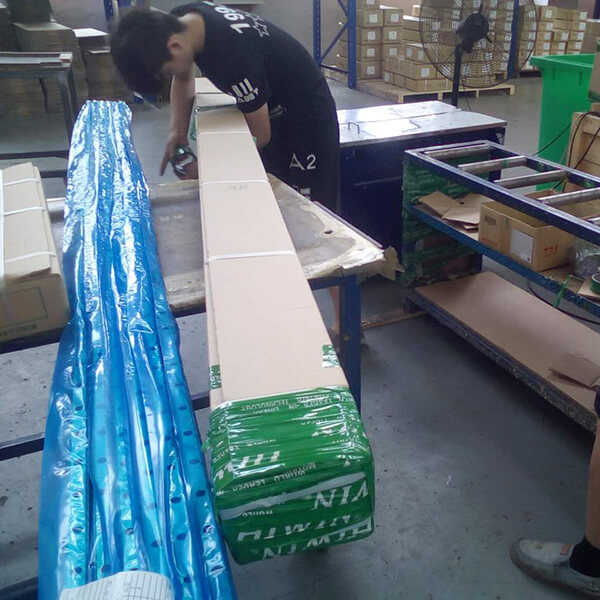

Carton box for rail


05

  Remark:

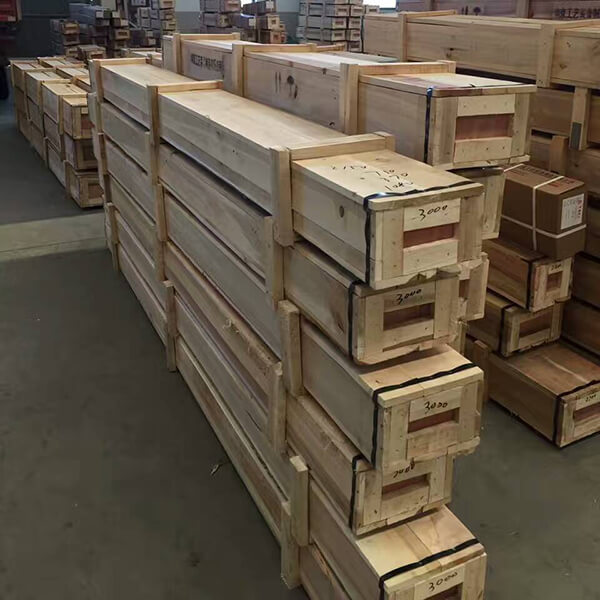

   For the large quantity of the rail or linear carriage, We will package them with        wooden box before shipment.
