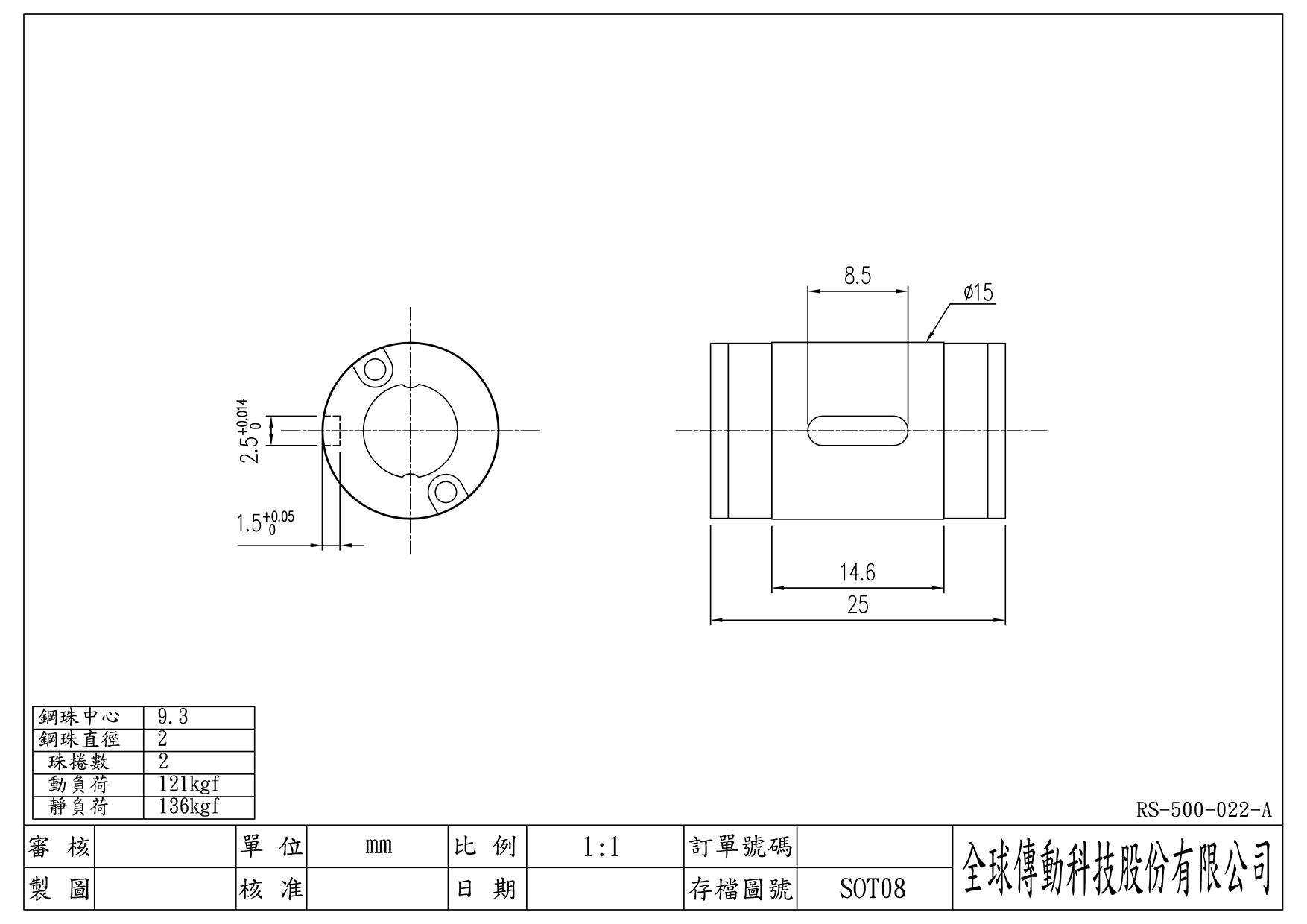

TBI Solid Ball Spline 8mm SOT008 Hollow Spline Shafts

The Design of TBI Ball Spline is to utilize the friction force through the contact of steel balls within in the Spline Nut and the grooves on the Spline Shaft. With TBI MOTION’s unique 40° angular contact design which enables the Ball spline delivers high sensitivity and extreme high load carrying capacity. The concept is optimal for the application involve with high speed, vibrates, impacts of loading and precise positioning requirements. Also when the Ball spline is used to function as linear bushing, the Ball spline provides ten times loading capacity than the linear bushing in the like dimensioned but with a compact profile. Namely, Durability and reliablility is the reason for choosing TBI Ball spline in your application.
