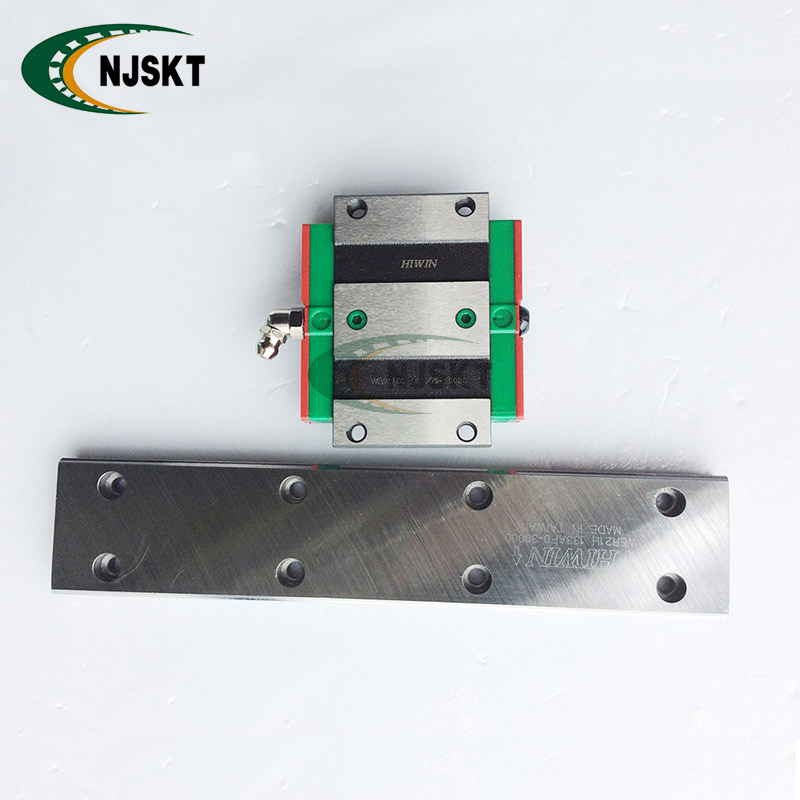

Original HIWIN WEW35CC Linear Guide Rail for Precision Machine

Item # : WEW35CC, WEW35CCZAC
Series: WE series
Block Type: flange block
Model Size : 35 mm
Load Type: Medium Load
Block Mounting: Mounting from Top
Block: Standard type block
Distance from the Edge: Tolerance of E value for standard rail is ± 0.5mm.
Preload Class: Z0- Light Preload (0 ~ 0.02C) , ZA- Medium Preload (0.03 ~ 0.05C) , ZB-Heavy Preload (0.06 ~ 0.08C)
Availability:
Quantity:
  • WEW35CC

  • HIWIN

  • WEW35CC, WEW35CCZAC

Original HIWIN WEW35CC  Linear Guide Rail for Precision Machine


TAIWAN HIWIN WE series features equal load ratings in the radial, reverse radial and the lateral direction with contact points at 45 degrees. This along with the wide rail, allows the guideway to be rated for high loads, moments and rigidity. By design, it has a self-aligning capability that can absorb most installation errors and can meet high accuracy standards. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited and/or high moments are required. HIWIN WE series Basic Dynamic Load Range from 5.23kN - 29.8 kN


Please notat that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have C (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).

WE series linear guides

Item #

WEW35CC, WEW35CCZAC

Series
WE series
Block Type
Flange type
Model Size
35 mm
Load Type
Medium load
Block Mounting
Mounting from Top
Block
Standard type block

Preload Class

Z0- Light Preload (0 ~ 0.02C)  ,

ZA- Medium Preload (0.03 ~ 0.05C) ,

ZB-Heavy Preload (0.06 ~ 0.08C)


Precision code

C

Dust Protection

Standard preotection (End seal and bottom seal)

WE series linear guide wayWEW-CC linear guide

<

Model No. Dimension of assembly (mm) Dimensons of block (mm) Dimensions of Rail Mounting bolt for rail  Basic Dynamic Load rating  Basic Static Load rating  Static rated Moment Weight
H H1 N W B B1 C L1 L K1 K2 G Mxl T H2 H3 WR WB HR D h d P E (mm) C (kN) C0 (kN) MR MP MY Block Rail
kN-m kg kg/m
WEW17CC 17 2.5 13.5 60 53 3.5 26 35 50.6 - 3.1 4.9 M4 5.3 4 3 33 18 9.3 7.5 5.3 4.5 40 15 M4x12 5.23 9.64 0.15 0.062 0.062 0.13 2.2
WEW21CC 21 3 15.5 68 60 4 29 41.7 59 9.68 3.65 12 M5 0.3 4.5 4.2 37 22 11 7.5 5.3 4.5 50 15 M4x12 7.21 13.7 0.23 0.1 0.1 0.23 3
WEW27CC 27 4 19 80 70 5 40 51.8 72.8 10.15 3.5 12 M6 8 6 5 42 24 15 7.5 5.3 4.5 60 20 M4x16 12.4 21.6 0.42 0.17 0.17 0.43 4.7
WEW35CC 35 4 25.5 120 107 6.5 60 77.6 102.6 13.35 5.25 12 M8 11.25 8 6.5 69 40 19 11 9 7 80 20 M6x20 29.8 49.4 1.48 0.67 0.67 1.26 9.7
WEW50CC 50 7.5 36 162 144 9 80 112 140 20.55 6 12.9 M10 14 12 10.5 90 60 24 14 12 9 80 20 M8x25 61.52 97.1 4.03 1.96 1.96 3.71 14.6

<

01

 Single color box of original


02

 Suitable carton size


03

Carton box for rail


05

  Remark:

   For the large quantity of the rail or linear carriage, We will package them with        wooden box before shipment.


Any questions and answers for HIWIN linear guides

S/N
Questions
Answers
1.
BrandHIWIN
2.
Fake or original genuine TaiWan HIWIN products you supply to customer?
We provide the 100% original Genuine TaiWan HIWIN products.
3.
How to gurantee of original HIWIN brand?
  1. You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods.

  2. Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.

4.
What kind of HIWIN linear guide you can supply to customers?
We can supply HG, EG, MG, RG, CG, WE types etc.
5.
What length of linear rail you provide to customers?

Max length of linear rail is 5600mm each, we can cut linear rail length by customer's

also supply the joint service if needs 1 pcs more than 5600mm.

6.
What preload of HIWIN linear guide you supply to customers?
Z0, ZA, ZB, ZF( contact sales to get the details)
7.
What accuracy of HIWIN linear guide you can supply to customers?

Grade C, H , P ( Stocked items)

Grade SP, UP  (We can help you to order them from TaiWan factory)

8.
Do you have stock for precision roller guides?
Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)
9.
Can you supply dust seals and self- lubricating systems of linear block?
Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available.
10.
Can you sell the linear block and linear rail in separated?
Sure, Linear block and linear rail in separated is available.
