Original 35mm CNC Rails CGW35CA HIWIN Linear Guide TaiWan

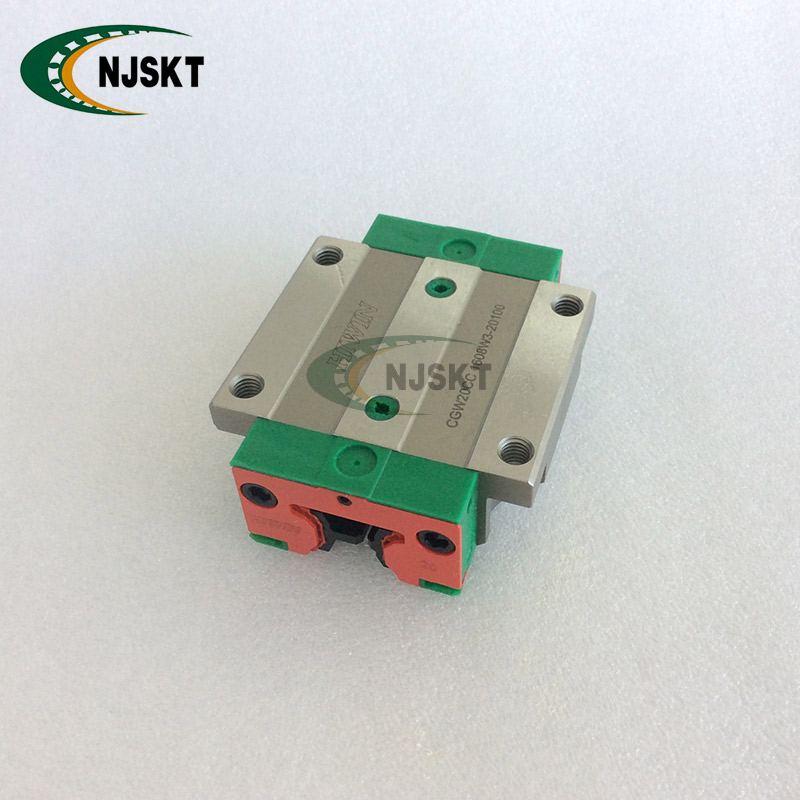

TAIWAN HIWIN CG series linear guideways have moment load capacities up to 50% higher than standard HG Assemblies. The O-Type (back-to-back) bearing configuration and an integrated recirculation unit optimize bearing circulation greatly improving moment load capacities and promoting smooth motion. An optional stainless steel cover strip increases dust protection and promotes smooth block transition.

Please notat that the first hole of rails (E dimensions will be the same at both ends unless otherwise specified in the purchase order). Also for the rails accuracy we have C (Normal), H (high), P(High precision) in stock, for the accuracy details, please kindly check within next page of Pdf file (G-Interchangeable-Accuracy-Grade).

HIWIN CG LINNEAR GUIDE

Item #	CGW35CA, CGW35CAZAC
Series	CG series
Block Type	Flange type
Model Size	35 mm
Load Type	Medium load
Block Mounting	Mounting from Top
Block	Standard type block
Preload Class	Z0- Light Preload (0 ~ 0.02C) , ZA- Medium Preload (0.03 ~ 0.05C) , ZB-Heavy Preload (0.06 ~ 0.08C)
Precision code	C
Dust Protection	Standard preotection (End seal and bottom seal

HIWIN CGW linear guide <

Model No.	Dimension of assembly (mm)			Dimensons of block (mm)									Dimensions of Rail						Basic Dynamic Load rating	Basic Static Load rating
	H	H1	N	W	B	B1	C	L1	L	G	Mxl	T	WR	HR	D	h	d	P	C (N)	C0 (N)
	H	H1	N	W	B	B1	C	L1	L	G	Mxl	T	WR	HR	D	h	d	P	C (N)	C0 (N)
CGW15CA	24	4.3	16	47	38	4.5	30	39.2	58.2	5.3	M5	6	15	16.2	7.5	5.3	4.5	60	13800	18020
CGW15HA	24	4.3	16	47	38	4.5	30	53.6	72.6	5.3	M5	6	15	16.2	7.5	5.3	4.5	60	17600	25530
CGW20CA	30	4.6	21.5	63	53	5	40	52.5	74.9	12	M6	6.5	20	20.55	9.5	8.5	6	60	23700	30510
CGW20HA	30	4.6	21.5	63	53	5	40	68.5	90.5	12	M6	6.5	20	20.55	9.5	8.5	6	60	28600	39900
CGW25CA	36	6.1	23.5	70	57	6.5	45	61	84	12	M8	7	23	24.25	11	9	7	60	34960	43940
CGW25HA	36	6.1	23.5	70	57	6.5	45	78.6	104.6	12	M8	7	23	24.25	11	9	7	60	42180	57460
CGW30CA	42	7	31	90	72	9	52	69	96.9	12	M10	10.5	28	28.35	14	12.35	9	80	46000	55190
CGW30HA	42	7	31	90	72	9	52	92.3	118.9	12	M10	10.5	28	28.35	14	12.35	9	80	58590	78180
CGW35CA	48	7.6	33	100	82	9	62	79	111.4	12	M10	10.1	34	31.95	14	12	9	80	61170	7900
CGW35HA	48	7.6	33	100	82	9	62	109	137.4	12	M10	10.1	34	31.95	14	12	9	80	77900	112340
CGW45CA	60	9.7	37.5	120	100	10	80	97.8	137.8	12.9	M12	15.1	45	39.85	20	17	14	105	97630	133000
CGW45HA	60	9.7	37.5	120	100	10	80	132.3	172.3	12.9	M12	15.1	45	39.85	20	17	14	105	124430	217200

Model No.	Dimension of assembly (mm)			Dimensons of block (mm)									Dimensions of Rail						Basic Dynamic Load rating	Basic Static Load rating
	H	H1	N	W	B	B1	C	L1	L	G	Mxl	T	WR	HR	D	h	d	P	C (N)	C0 (N)
	H	H1	N	W	B	B1	C	L1	L	G	Mxl	T	WR	HR	D	h	d	P	C (N)	C0 (N)
CGH15CA	28	4.3	9.5	34	26	4	26	39.2	58.2	5.3	M4X5	6	15	16.2	7.5	5.3	4.5	60	13800	18020
CGH15HA	28	4.3	9.5	34	26	4	26	53.6	72.6	5.3	M4X5	6	15	16.2	7.5	5.3	4.5	60	17600	25530
CGH20CA	30	4.6	12	44	32	6	36	52.5	74.9	12	M5X6	8	20	20.55	9.5	8.5	6	60	23700	30510
CGH20HA	30	4.6	12	44	32	6	50	68.5	90.5	12	M5X6	8	20	20.55	9.5	8.5	6	60	28600	39900
CGH25CA	40	6.1	12.5	48	35	6.5	35	61	84	12	M6X8	8	23	24.25	11	9	7	60	34960	43940
CGH25HA	40	6.1	12.5	48	35	6.5	50	78.6	104.6	12	M6X8	8	23	24.25	11	9	7	60	42180	57460
CGH30CA	45	7	16	60	40	10	40	69	96.9	12	M8X10	9.5	28	28.35	14	12.35	9	80	46000	55190
CGH30HA	45	7	16	60	40	10	60	92.3	118.9	12	M8X10	9.5	28	28.35	14	12.35	9	80	58590	78180
CGH35CA	55	7.6	18	70	50	10	50	798	111.4	12	M8X12	10.2	34	31.95	14	12	9	80	61170	79300
CGH35HA	55	7.6	18	70	50	10	70	105	137.4	12	M8X12	10.2	34	31.95	14	12	9	80	77900	1123400
CGH45CA	70	9.7	20.5	86	60	13	60	97.8	137.8	12.9	M10X17	16	45	39.85	20	17	14	105	97630	133000
CGH45HA	70	9.7	20.5	86	60	13	80	132.3	172.3	12.9	M10X17	16	45	39.85	20	17	14	105	124430	217200

Dimension of CG linear guides.pdf

Single color box of original

Suitable carton size

Carton box for rail

Remark:

For the large quantity of the rail or linear carriage, We will package them with wooden box before shipment.

Any questions and answers for HIWIN linear guides

S/N	Questions	Answers
1.	Brand	HIWIN
2.	Fake or original genuine TaiWan HIWIN products you supply to customer?	We provide the 100% original Genuine TaiWan HIWIN products.
3.	How to gurantee of original HIWIN brand?	You can pay to us by Paypal or Alibaba, It can supply gurantee to you, untill you get the goods. Please open HIWIN website to checking the order number what is showing on the linear block and ball nut.
4.	What kind of HIWIN linear guide you can supply to customers?	We can supply HG, EG, MG, RG, CG, WE types etc.
5.	What length of linear rail you provide to customers?	Max length of linear rail is 5600mm each, we can cut linear rail length by customer's also supply the joint service if needs 1 pcs more than 5600mm.
6.	What preload of HIWIN linear guide you supply to customers?	Z0, ZA, ZB, ZF( contact sales to get the details)
7.	What accuracy of HIWIN linear guide you can supply to customers?	Grade C, H , P ( Stocked items) Grade SP, UP (We can help you to order them from TaiWan factory)
8.	Do you have stock for precision roller guides?	Yes, we have stocked of RG roller guides, ( has square type of RGH, and Flange type of RGW)
9.	Can you supply dust seals and self- lubricating systems of linear block?	Yes, ZZ, KK, DD, SH, ZH, DH, KH dust seals and E2 self-lubricating systesm all is available.
10.	Can you sell the linear block and linear rail in separated?	Sure, Linear block and linear rail in separated is available.
